Description

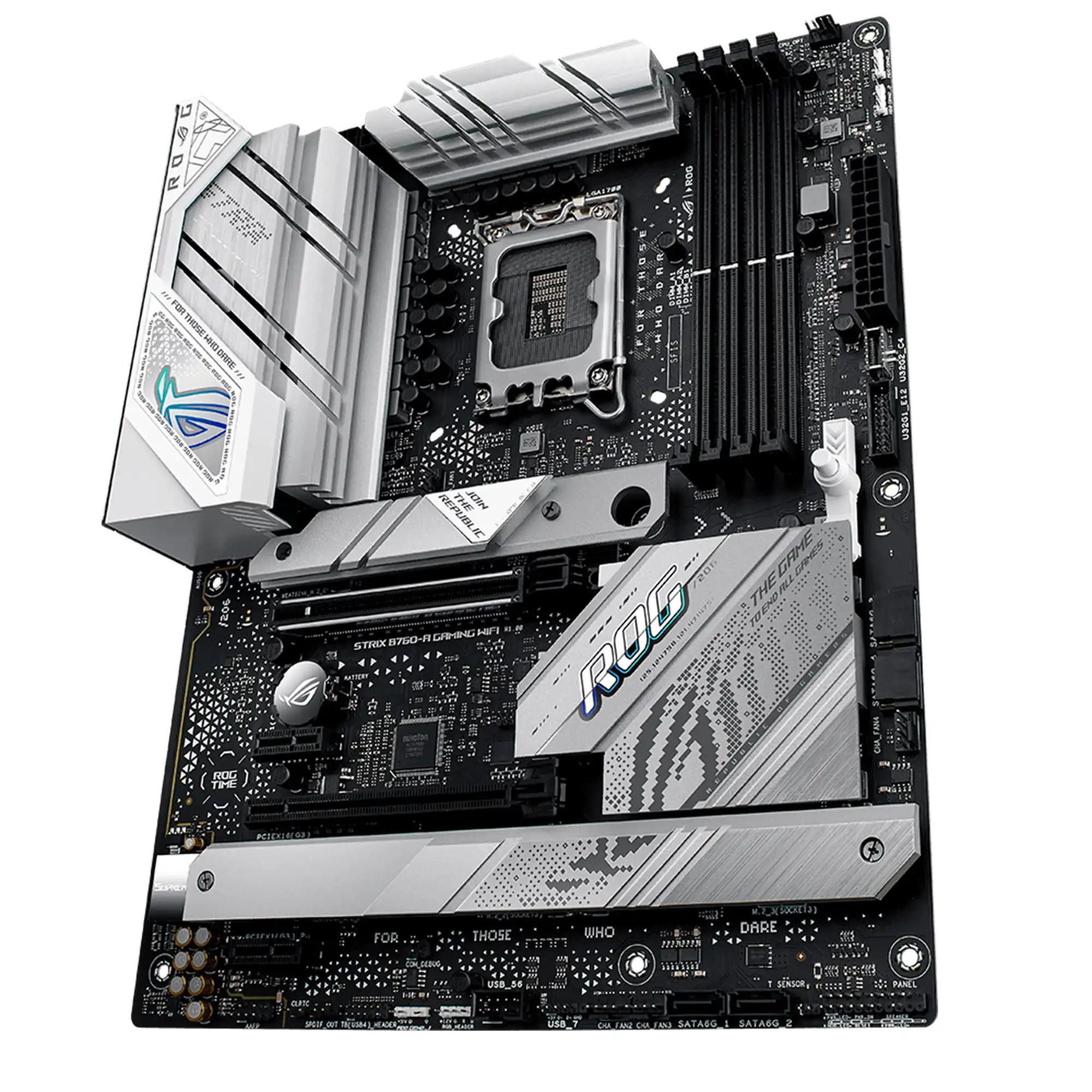

ASUS ROG STRIX B760-A GAMING WIFI • Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors • Intel Core 12th Gen • Pentium Gold and Celeron Processors • Intel B760 Chipset • Memory : 4 x DIMM slots • Max. 192GB • DDR5 • Dual Channel Memory Architecture • Supports Intel Extreme Memory Profile (XMP) • Graphics: 1 x DisplayPort • 1 x HDMI port • 1 x PCIe 5.0 x16 slot • 1 x PCIe 3.0 x16 slot (supports x4 mode) • 2 x PCIe 3.0 x1 slots* • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* • Intel 13th & 12th Gen Processors • M.2_1 slot (Key M) • type 2242/2260/2280 (supports PCIe 4.0 x4 mode) • Intel B760 Chipset: M.2_2 slot (Key M) • type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) • M.2_3 slot (Key M) • type 2242/2260/2280 (supports PCIe 4.0 x4 mode) • 4 x SATA 6Gb/s ports • Ethernet: 1 x Intel 2.5Gb Ethernet • ASUS LANGuard • Wireless & Bluetooth: Wi-Fi 6E • 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) • Supports 2.4/5/6GHz frequency band* • Bluetooth® v5.3** • USB: Rear USB (Total 9 ports) • 1 x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C) • 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) • 3 x USB 3.2 Gen 1 (5G) port (2 x Type-A • 1 x USB Type-C) • 4 x USB 2.0 ports (4 x Type-A) • Front USB (Total 6 ports) • 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C) • 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports • 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports • Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 • Back Panel I/O Ports: 1 x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C) • 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) • 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A • 1 x USB Type-C) • 4 x USB 2.0 ports (4 x Type-A) • 1 x DisplayPort • 1 x HDMI port • 1 x Wi-Fi Module • 1 x Intel® 2.5Gb Ethernet port • 5 x Audio jacks • 1 x BIOS FlashBack button • 90MB1EP0-M1EAY0
