Description

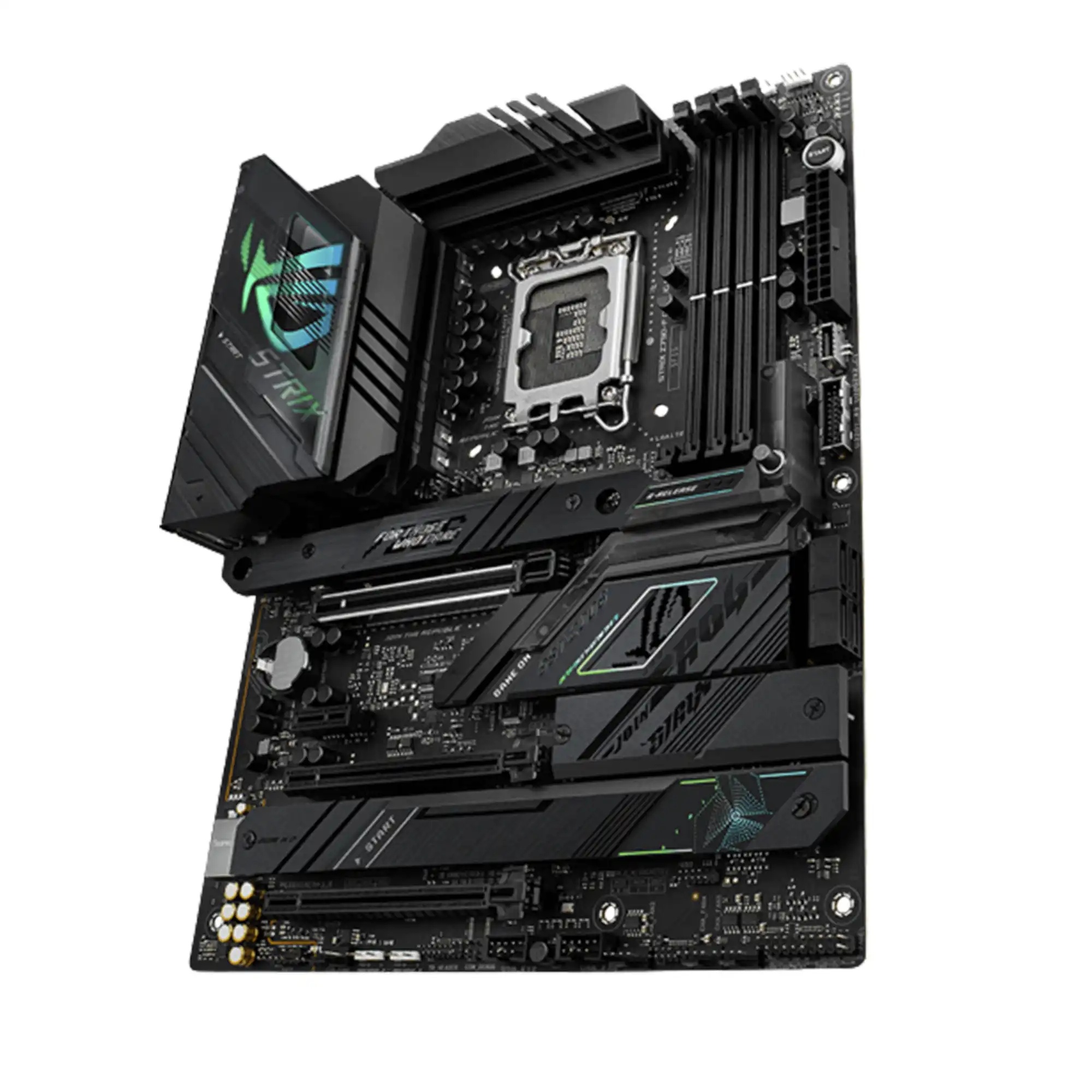

ASUS ROG STRIX Z790-F GAMING WIFI • CPU Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core • Pentium Gold and Celeron Processors • Chipset: Intel Z790 Chipset • Memory: 4 x DIMM • Max. 128GB • DDR5 • 7800+(OC)/7600(OC)/7400(OC)/ 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC • Un-buffered Memory • Dual Channel Memory Architecture • Graphics: 1 x DisplayPort • 1 x HDMI port • Expansion Slots: Intel 13th & 12th Gen Processors • 1 x PCIe 5.0 x16 slot • Intel Z790 Chipset • 2 x PCIe 4.0 x16 slots (support x4 mode) • 1 x PCIe 3.0 x1 slot • Storage: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports • Intel 13th & 12th Gen Processors: M.2_1 slot (Key M) • type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) • Intel Z790 Chipset: M.2_2 slot (Key M) • type 2242/2260/2280 (supports PCIe 4.0 x4 mode) • M.2_3 slot (Key M) • type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) • M.2_4 slot (Key M) • type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports • Ethernet: 1 x Intel 2.5Gb Ethernet • Wireless & Bluetooth: Wi-Fi 6E • 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) • Supports 2.4/5/6GHz frequency band • Bluetooth v5.3 • USB: Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) • 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) • 4 x USB 3.2 Gen 1 ports (4 x Type-A) • 4 x USB 2.0 ports (4 x Type-A) • Front USB (Total 7 ports): 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C with up to 30W PD Fast-charge) • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports • 2 x USB 2.0 headers supports 4 additional USB 2.0 ports • Back Panel I/O Ports: 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) • 3 x USB 3.2 Gen 2 ports (2 x Type-A • 1 x USB Type-C) • 4 x USB 3.2 Gen 1 ports (4 x Type-A) • 2 x USB 2.0 ports (2 x Type-A) • 1 x DisplayPort • 1 x HDMI port • 1 x Wi-Fi Module • 1 x Intel 2.5Gb Ethernet port • 5 x Gold-plated audio jacks • 1 x Optical S/PDIF out port • 1 x BIOS FlashBack button • 1 x Clear CMOS button • 90MB1CP0-M0EAY0
