Description

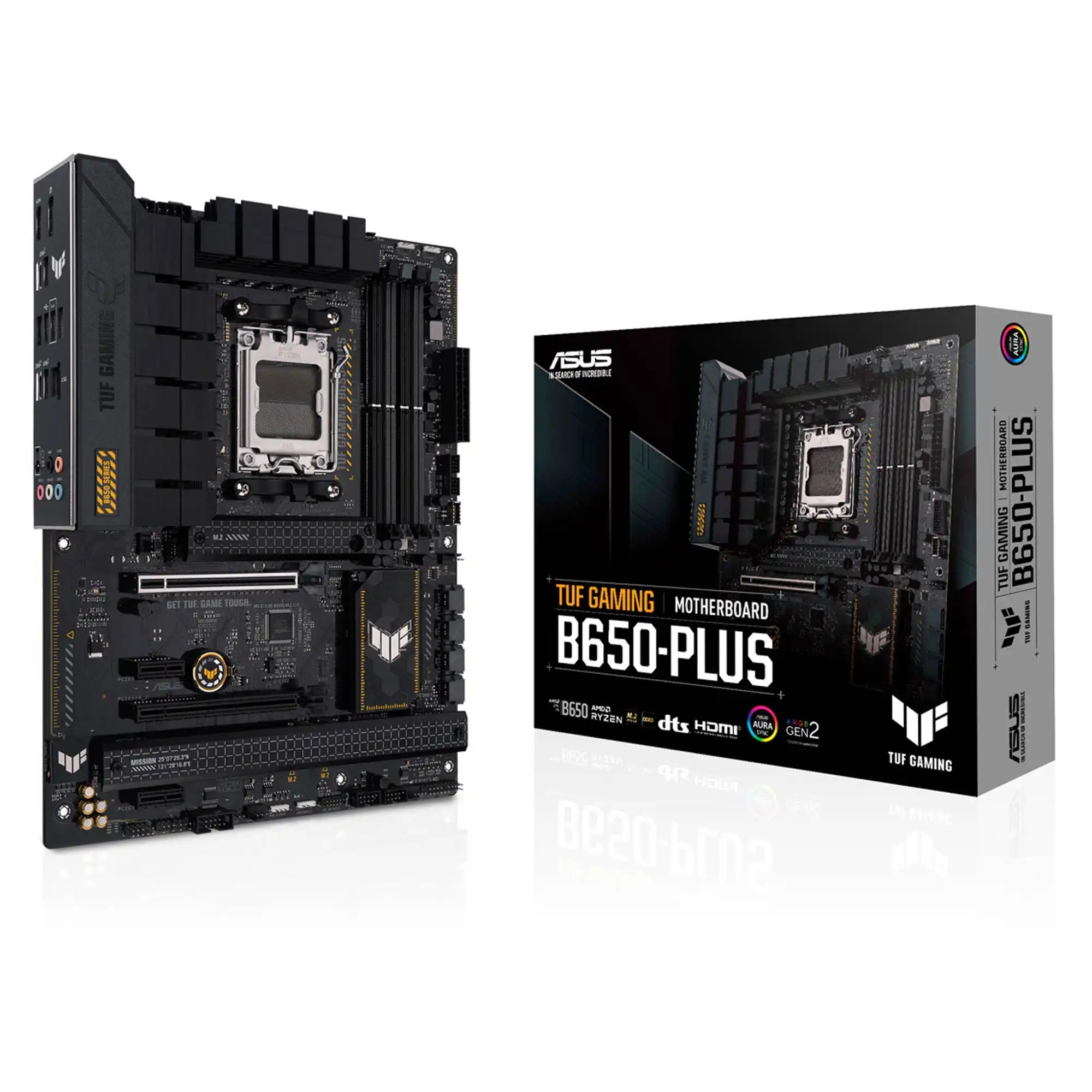

ASUS TUF GAMING B650-PLUS • CPU: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors • Chipset: AMD B650 • Memory: 4 x DIMM • Max. 128GB • DDR5 • 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC • Un-buffered Memory • Dual Channel Memory Architecture • Graphics: 1 x DisplayPort* • 1 x HDMI port** • * Supports max. 8K@60Hz as specified in DisplayPort 1.4 • ** Supports 4K@60Hz as specified in HDMI 2.1 • Expansion Slots: AMD Ryzen™ 7000 Series Desktop Processors* • 1 x PCIe 4.0/3.0 x16 slot(s) • AMD B650 Chipset: 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) • 2 x PCIe 4.0/3.0 x1 slots • Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports • AMD Ryzen 7000 Series Desktop Processors: M.2_1 slot (Key M) • type 2242/2260/2280(supports PCIe 5.0 x4 mode) • M.2_2 slot (Key M) • type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) • AMD B650 Chipset: M.2_3 slot (Key M) • type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** • 4 x SATA 6Gb/s ports • * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 • ** M.2_3 shares bandwidth with PCIEX16_2. PCIEX16_2 will be suspended once M.2_3 is populated • Ethernet: 1 x Realtek 2.5Gb Ethernet • TUF LANGuard • USB: Rear USB (Total 8 ports): 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) • 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) • 4 x USB 2.0 port(s) (4 x Type-A) • Front USB (Total 7 ports): 1 x USB 3.2Gen 1 connector (supports USB Type-C) • 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports • 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports • Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC • Supports: Jack-detection • Multi-streaming • Front Panel Jack-retasking • Supports up to 24-Bit/192 kHz playback • Back Panel I/O Ports: 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C) • 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) • 4 x USB 2.0 port(s) (4 x Type-A) • 1 x DisplayPort • 1 x HDMI port • 1 x Realtek 2.5Gb Ethernet port • 5 x Audio jacks • 1 x BIOS FlashBack button • 90MB1BY0-M0EAY0
