Description

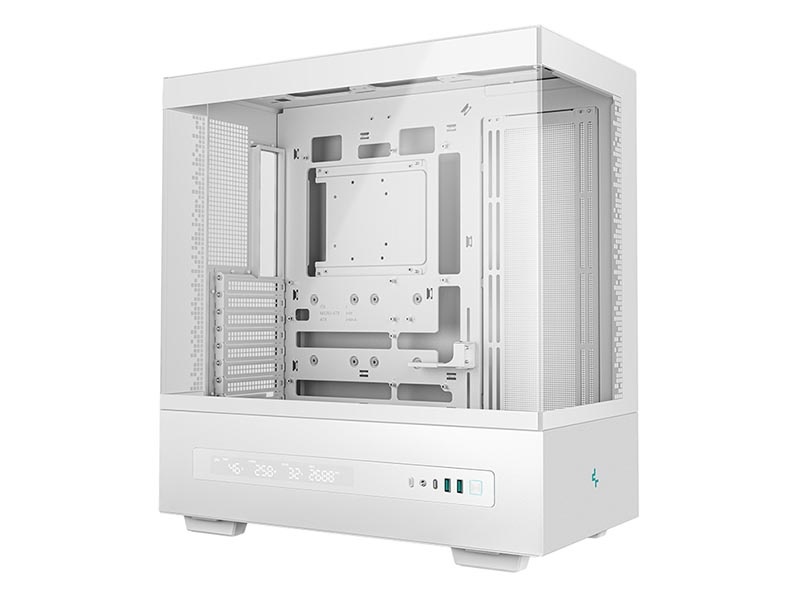

The CH690 DIGITAL WH is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.

Technical Spec

Product Dimensions: 481×240×516mm(L×W×H)

Net Weight: 9.8Kg

Materials: ABS+SPCC+Tempered Glass

Motherboard Support: Mini-ITX / Micro-ATX / ATX

*ATX(Rear Connector)/Micro-ATX(Rear Connector)

Front I/O Ports: USB3.0×2、Gen2 Type-C x1、Audio/Mic×1

3.5″ Drive Bays: 1

2.5″ Drive Bays: 2+1

Expansion Slots: 8Slots

Pre-Installed Fans: None

Fan Support: Front:NA

Top:3×120 / 3×140mm

Side:3×120 / 3×140mm

PSU Shrouded :3×120 / 3×140mm

Rear: 1×120 / 1×140mm

Radiator Support: Front: NA

Top: 120/140/240/280/360/420mm

Side: 120/140/240/280mm

Bottom: 120/240/360mm

CPU Cooler Height Limit: 182mm

GPU Length Limit: 450mm

Power Supply Type: ATX PS2（maximum length: 180mm）
