Description

Details Make the Difference

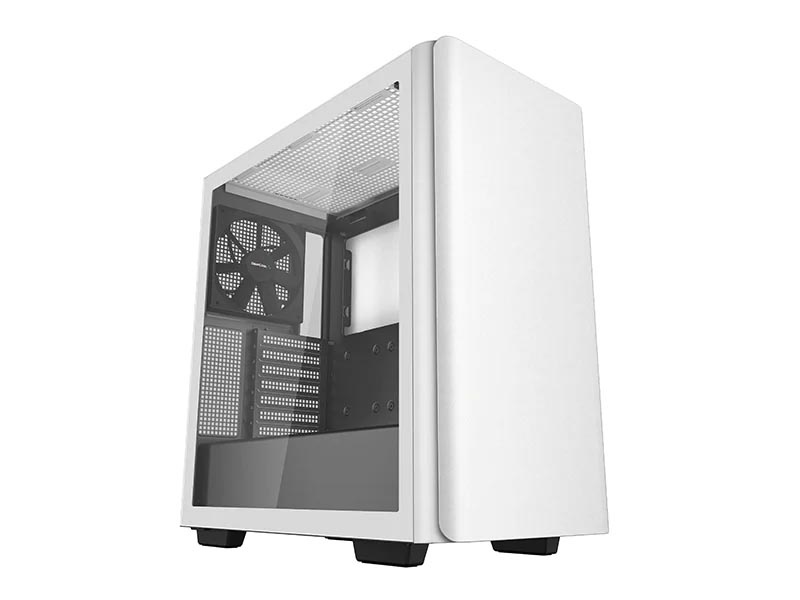

The DeepCool CK500 Mid-Tower Case is a sleek and minimal case that delivers balanced airflow and noise performance for the modern-day builder with two pre-installed 140mm performance fans.

Quick-Release Solid Front Panel

Sleek curved edges offer a premium look and feel in a minimalistic design while still featuring large ventilation for more airflow. The solid steel panel adopts an easy quick-release magnetic connection.

Wide and Spacious Interior

Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CK500 provides ample space without being too bulky.

Big Air Cooling

Two pre-installed DeepCool 140mm

airflow-focused fans help concentrate cooling performance for lower temperatures and noise levels.

Choose Your Cooling Configuration

The CK500 has great cooling capacity with up to 6x 120mm or 5x 140mm cooling fans and liquid cooling support for 280/360mm radiators through the front panel and 280/240mm radiators on the top panel.

Convenient Storage Options

Install up to 2x 2.5in storage drives directly onto the motherboard tray with quick-release push-pins and 2x 3.5in HDDs on a tool-less tray design for extra simplicity.

Modern Front I/O

Features two USB 3.0 ports, a single USB 3.1 Type-C port, and a combination audio jack for the most important connections up close.

Technical Spec

Product Dimensions: 456×230×471mm(L×W×H)

Net Weight: 8Kg

Materials: ABS+SPCC+Tempered Glass

Motherboard Support: Mini-ITX / Micro-ATX / ATX / E-ATX

Front I/O Ports: USB3.0×2、Audio×1、TypeC×1

3.5″ Drive Bays: 2

2.5″ Drive Bays: 2

Expansion Slots: 7 Slots

Pre-Installed Fans: Front: 1×140mm

Rear: 1×140mm

Fan Support: Front: 3×120 / 2×140mm

Top: 2×120 / 2×140mm

Rear: 1×120 / 1×140mm

Radiator Support: Front: 120/140/240/280/360mm

Top: 120/140/240/280mm

Rear: 120/140mm

CPU Cooler Height Limit: 175mm

GPU Length Limit: 380mm

Power Supply Type: ATX PS2 （maximum length: 160mm）
