Description

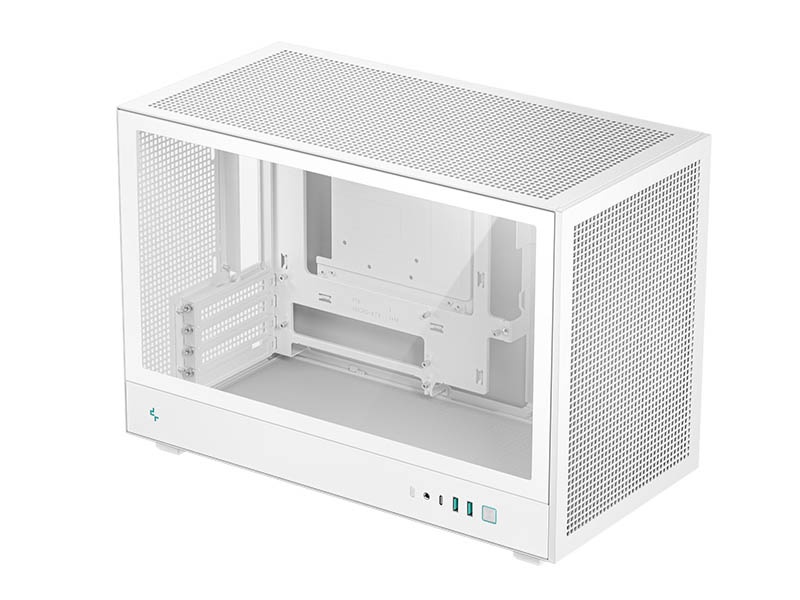

The CH260 WH is an expanded version of the classic DeepCool ITX case CH160, it is capable of containing up to M-ATX motherboard and inherited with the high airflow legacy thanks to the full steel mesh panel.

Technical Spec

Product Dimensions: 438mm*225mm*312.5mm(L×W×H)

Net Weight: 5.3Kg

Materials: ABS+SPCC+Tempered Glass

Motherboard Support: Mini-ITX / Micro-ATX

*Micro-ATX(Rear Connector)

Front I/O Ports: USB3.0×2、Gen2 Type-C x1、Audio/Mic×1

3.5″ Drive Bays: 1

2.5″ Drive Bays: 1

Expansion Slots: 4Slots

Pre-Installed Fans: None

Fan Support: Front:2×120mm

Top:3×120mm/2×140mm

Rear: 1×120mm

Radiator Support: Front: NA

Top:120/240/360mm

Bottom: NA

Rear:120mm

CPU Cooler Height Limit: 174mm

GPU Size Limit: 388/413mm（No Front fans）

Power Supply Type: ATX PS2（maximum length: 150mm）
