Description

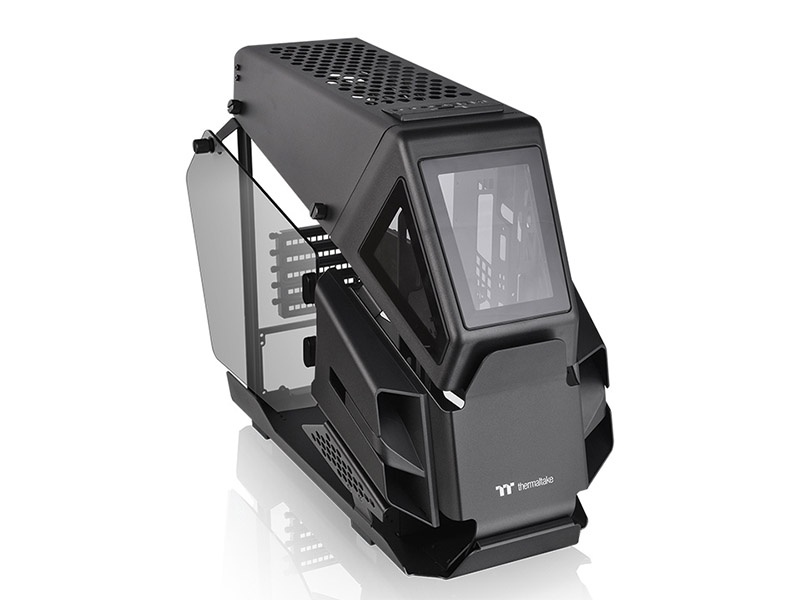

The Thermaltake AH T200 is a helicopter styled open frame micro chassis which comes with two 4mm tempered glass panels on left and right sides and can support motherboards up to Micro ATX.

P/N: CA-1R4-00S1WN-00

Series: AH Series

Model: AH T200

CASE TYPE: Micro Case

Dimension (H x W x D): 444.2 x 282 x 551.5 mm (17.5 x 11.1 x 21.7 inch)

NET WEIGHT: 10.8 kg / 23.8 lb

PANEL: Tempered Glass x 2

Color: Black

MATERIAL: SPCC

COOLING SYSTEM: N/A

Drive Bays

-Accessible: 2 x 3.5″ or 3 x 2.5” (3.5” HDD thickness limitation: 22mm)

EXPANSION SLOTS: 5

MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)

I/O Port: USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1

PSU: Standard PS2 PSU (optional)

FAN SUPPORT

Front:

2 x 120mm or 1 x 120mm

2 x 140mm or 1 x 140mm

Top:

2 x 120mm or 1 x 120mm

2 x 140mm or 1 x 140mm

RADIATOR SUPPORT

Front:

1 x 240mm or 1 x 120mm

1 x 280mm or 1 x 140mm

CLEARANCE

CPU cooler max height: 150mm

VGA max length: 320mm

PSU max length: 180mm

3.5” HDD thickness limitation: 22mm
