Description

SPECIFICATIONS

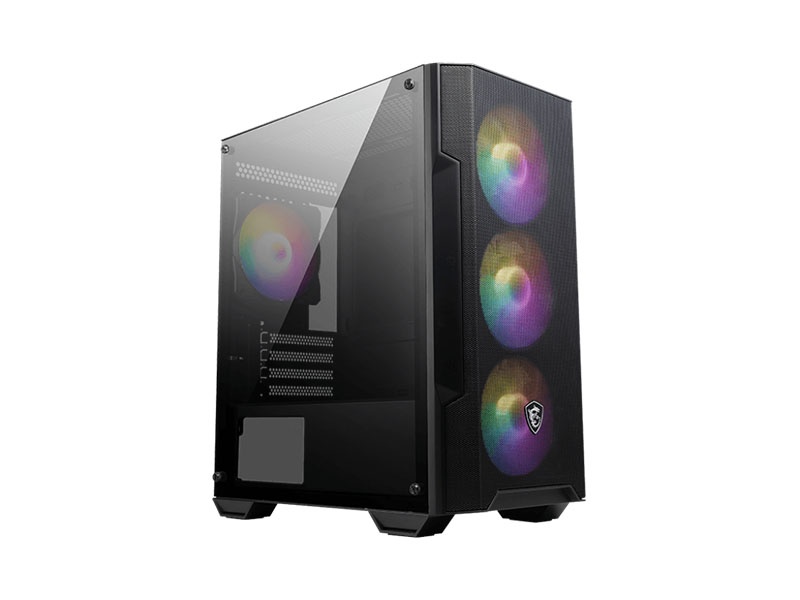

Product Name: MAG FORGE M100A

Case Form: Factor Micro ATX Tower

Motherboard Form Factor Support: Micro-ATX / Mini-ITX

I/O Ports:

2x USB 2.0 Type-A

1x USB 3.2 Gen 1 Type-A

1x Audio

1x Mic

Drive Mount Support: 2x 2.5”, 1x 2.5” / 3.5”, 1x 3.5”

Expansion Slots: 4

Maximum GPU Length: 300 mm / 11.81 inches

Maximum CPU Cooler Height: 160 mm / 6.3 inches

Power Supply Support: ATX

Fan Size Support:

Front: 3 x 120 mm

Top: 2 x 120 mm

Rear:1 x 120 mm

Pre-installed Fan Front:

3 x 120mm Auto-RGB Fan

Rear: 1 x 120mm Auto-RGB Fan

Radiator Size Support:

Front: 120 / 240 mm

Top: 120 / 240 mm

Rear: 120 mm

Dimensions (DxWxH): 388 x 200 x 423mm / 15.28 x 7.87 x 16.65 inches

Net Weight: 3.36 kg / 7.41 lbs

Gross Weight: 4.25 kg / 9.37 lbs

CONNECTIONS

Power Button

Reset Button

Mic in / Audio out

2x USB 2.0 Type-A

1x USB 3.2 Gen 1 Type-A

LED Switch Button (no function)
