SPECIFICATIONS

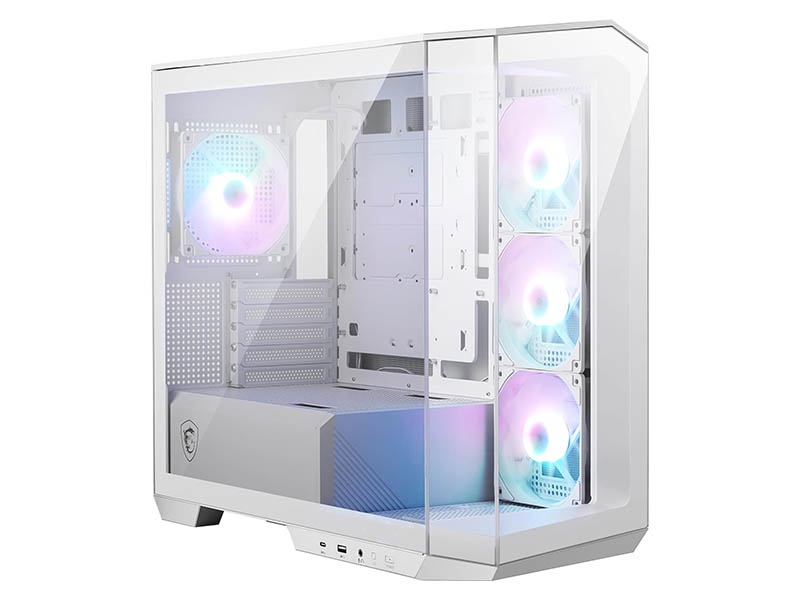

Product Name: MAG PANO M100R PZ WHITE

Case Form Factor: Micro- ATX Tower

Motherboard Form Factor Support: M-ATX(Back-connect supported) / ITX

I/O Ports:

1 x USB 3.2 Gen 1 Type-A

1 x USB 3.2 Gen 2×2 Type-C

1 x Audio-Out / Mic-in

1 x LED Switch Button

1 x Power Button

Drive Mount Support:

1 x 2.5”

1 x 2.5”/3.5” combo (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”)

Expansion Slots: 5

Maximum GPU Length: 390 mm / 15.35 inches *Support horizontal installation only.

Maximum CPU Cooler Height: 175 mm / 6.9 inches

Power Supply Support: ATX

Maximum PSU Length: 200 mm / 7.87 inches

Fan Size Support:

Top: 3 x 120 mm / 2 x 140 mm

Front: NA

Rear: 1 x 120 mm / 1 x 140 mm

Side: 3 x 120 mm

Bottom: 1 x 120 mm

PSU Shroud: 2 x 120 mm

Pre-installed Fan Size Side:

3 x 120 mm

Rear: 1 x 120 mm

Pre-installed Fan Type Side:

3 x ARGB Fan (Reverse-blade)

Rear: 1 x ARGB Fan

Radiator Size Support:

Top: 120 / 240 / 360 mm

Front: NA

Rear: 120 / 140 mm

Side: NA

Bottom: NA

Dimensions (DxWxH):440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches

Net Weight: 8.66 kg

Gross Weight: 11.29 kg
