SPECIFICATIONS

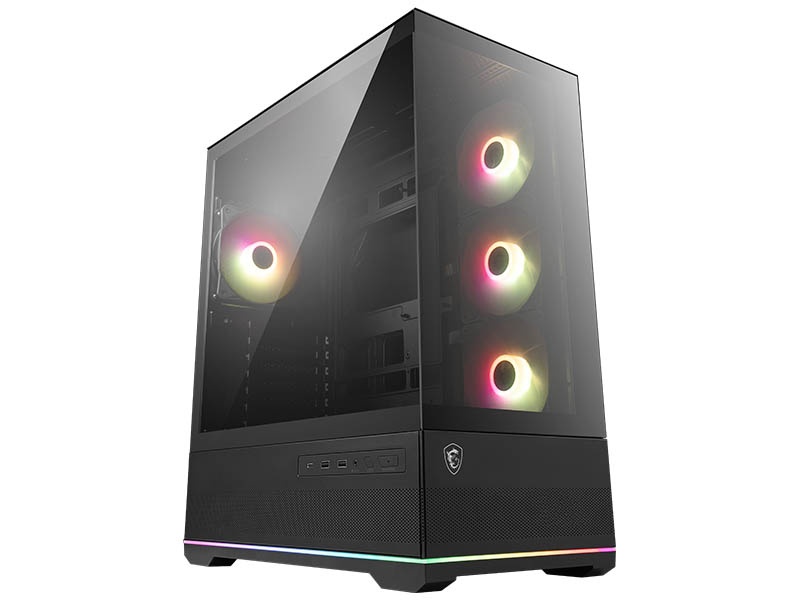

Product Name: MAG PANO 110R PZ

Case Form Factor: Mid-Tower

Motherboard Form Factor Support

Regular: ATX / Micro-ATX / Mini-ITX

Back-connect: ATX / Micro-ATX

I/O Ports:

1 x USB 20Gbs (Type-C)

2 x USB 5Gbs (Type-A)

1 x Audio-Out / Mic-in

1 x LED Button

1 x Power Button

Drive Mount Support:

2 x 2.5“

2 x 3.5“

2 x 2.5″/3.5″ combo

Expansion Slots: 7

Maximum GPU Length: 400 mm / 15.75 inches

Maximum CPU Cooler Height: 160 mm / 6.30 inches

Power Supply Support: ATX

Maximum PSU Length: 200 mm / 7.87 inches

Fan Size Support

Top: 3 x 120 mm / 2 x 140 mm

Front: NA

Rear: 1 x 120 mm

Side: 3 x 120 mm / 2 x 140 mm

Bottom: 3 x 120 mm (Above the power shroud)

Pre-installed Fan Size

Side: 3 x 120 mm

Rear: 1 x 120 mm

Pre-installed Fan Type

Side: 3 x ARGB Fan (Reverse Blades Fan)

Rear: 1 x ARGB Fan

Radiator Size Support

Top: 120 / 140 / 240 / 280 / 360 mm

Front: NA

Rear: 120 mm

Side: NA

Bottom: NA

Dimensions (DxWxH) 420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches
