Description

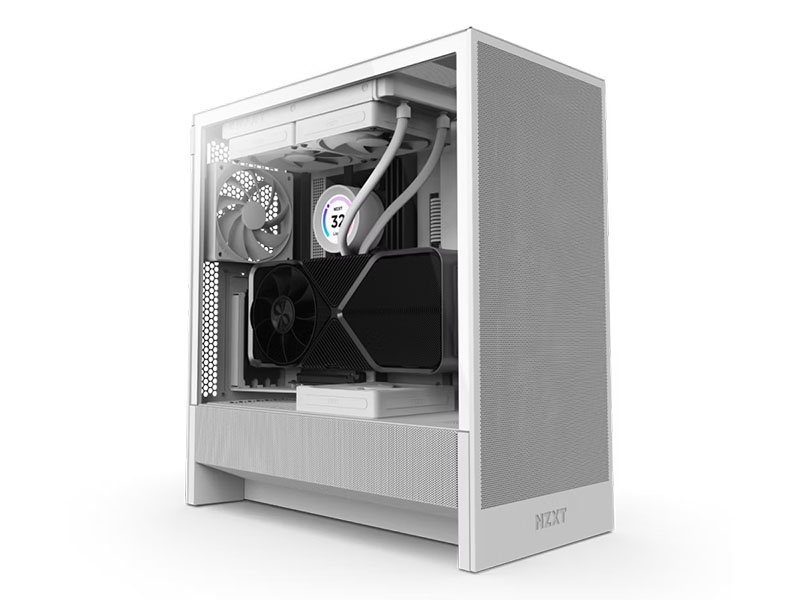

The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

Tech Specs

Motherboard Support:

E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX

Enclosure Type:Mid-Tower

Case Material: SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

Height (with feet): 465 mm / 18.31 in

Width: 225 mm / 8.86 in

Depth: 430 mm / 16.93 in

Weight: 7.28 kg / 16.04 lb

Compatibility & Clearance

CPU Cooler Height: Up to 170 mm

GPU Length: Up to 410 mm

PSU Length: Up to 200 mm

Cable Management: Up to 28.7 mm

Top Radiator: Up to 240 mm (280 mm with low-profile memory)

Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:

Up to 55 mm

Front Ports

USB 3.2 Type-A: 1

USB 3.2 Gen 2×2 Type-C (20 Gbps): 1

Headset Audio Jack: 1

Expansion Slots

Standard: 7

Vertical: 0

Drive Bays

2.5″: 2

3.5″: 1

Fan Support

Front: 3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)

Top: 2 x 120 mm / 2 x 140 mm

Bottom: 2 x 120 mm

Rear: 1 x 120 mm (1 x F120Q Case Version included)

Radiator Support

Front: Up to 360 mm

Top: Up to 240 mm (280mm with low-profile memory only)

Fan Specs

Model: F120Q (Case Version)

Speed: 1,350 ± 150 RPM

Airflow: 60.2 CFM

Static: 1.05 mm-H₂O

Noise: 24.1 dBA

Fan Connector: 3-pin
