Description

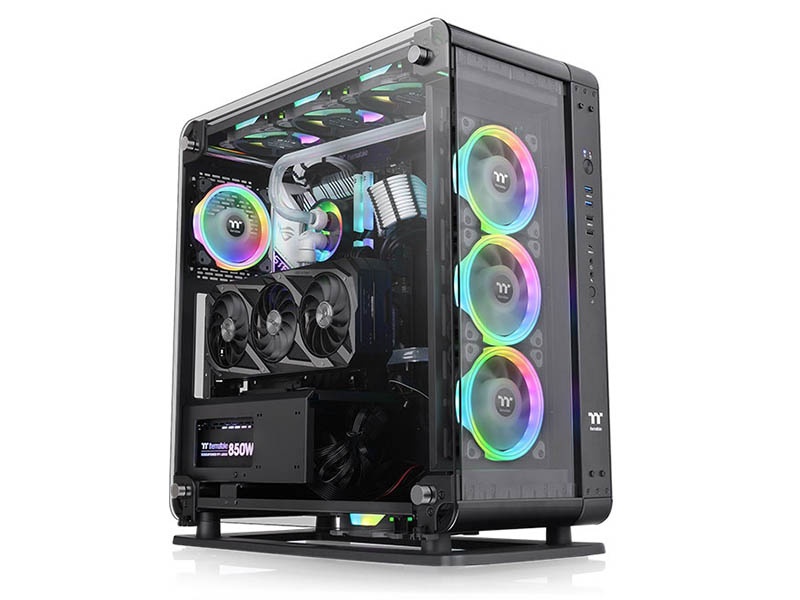

The Core P6 TG is a transformable CEB Mid Tower Case that can be either a closed or open styled case with Tt LCS Certification.

The Core P6 TG features a fully modular design, Rotational PCI-E Slots, a PSU cover, an extra GPU bracket, support for 120mm and 140mm fans, support for 360mm and 280mm radiators, and removable filters. With all the significant features, the potential for the hardware expansion and cooling solution is remarkable for the Core P6 TG. Users will enjoy the process of building in the Core P6 TG Mid Tower Case and find it truly unique and innovative.

SERIES: Core

MODEL: Core P6 TG

CASE TYPE: Mid Tower

DIMENSION (H X W X D): 565 x 255 x 530mm (22.2 x 10 x 20.9 inch)

NET WEIGHT: 17.84 kg / 39.33 lbs.

PANEL: 4mm Tempered Glass x 3

COLOR: Black

MATERIAL: SPCC

COOLING SYSTEM: –

DRIVE BAYS

-ACCESSIBLE

-HIDDEN

4 x 3.5” or 8 x 2.5”

EXPANSION SLOTS: 7 (Rotatable Patented Design)

MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 10.5”(CEB)

I/O PORT: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1

PSU: Standard PS2 PSU (optional)

FAN SUPPORT:

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Rear: 1 x 120mm

Right (M/B Side):

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Bottom:

3 x 120mm, 2 x 120mm or 1 x 120mm

2 x 140mm, 1 x 140mm

RADIATOR SUPPORT

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Top:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Rear: 1 x 120mm

Right (M/B Side):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Bottom: 1 x 240mm, 1 x 120mm

CLEARANCE

CPU cooler height limitation: 180mm

VGA length limitation: 300mm (With Reservoir)

400mm (Without Reservoir)

430mm (With Radiator)

458mm (Without Radiator)

PSU length limitation: 200mm

P/N: CA-1V2-00M1WN-00
