Description

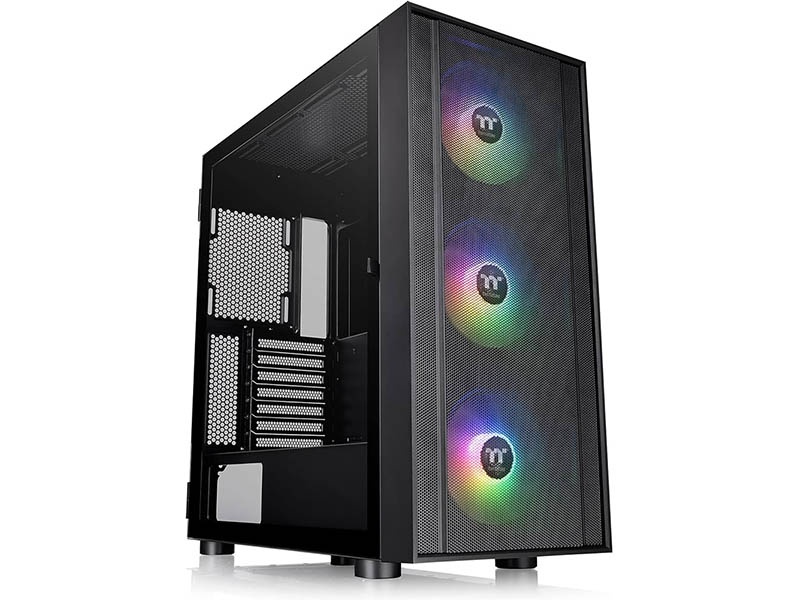

H570 TG ARGB mid-tower chassis comes with three pre-installed hydraulic bearing 120mm ARGB Lite front fans, and can support up to E-ATX (12″ x 13″) Motherboards.

MODEL: H570 TG ARGB

CASE TYPE: Mid Tower

DIMENSION (H X W X D): 487 x 216 x 463.6 mm, (19.2 x 8.5 x 18.3 inch)

NET WEIGHT: 7.5 kg / 16.5 lbs.

PANEL: 4mm Tempered Glass x 1

COLOR: Black

MATERIAL: SPCC

COOLING SYSTEM

Front(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 3

DRIVE BAYS: 2 x 3.5”, 2 x 2.5” or 4 x 2.5”

EXPANSION SLOTS: 7

MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 13”(E-ATX)

I/O PORT: USB 3.0 x 2, HD Audio x 1

PSU: Standard PS2 PSU (optional)

FAN SUPPORT

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

2 x 200mm, 1 x 200mm

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm,

2 x 140mm, 1 x 140mm

Rear:

1 x 120mm

RADIATOR SUPPORT

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Top:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Rear:

1 x 120mm

CLEARANCE

CPU cooler height limitation: 160mm

VGA length limitation: 375mm

PSU length limitation: 180mm

P/N: CA-1T9-00M1WN-01
