Description

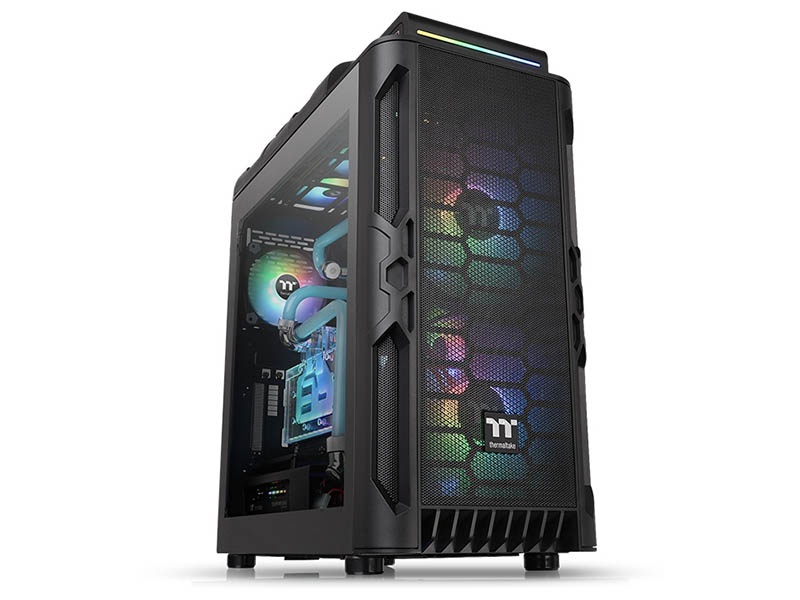

Level 20 RS ARGB is an ATX mid tower chassis that comes with two 4mm thick tempered glass windows and two preinstalled 200mm 5V ARGB front fans and one 120mm standard rear fan.

P/N: CA-1P8-00M1WN-00

Series: Level 20

Model: Level 20 RS ARGB

CASE TYPE: Middle Tower

Dimension (H x W x D): 524 x 240.8 x 553 mm, (20.62 x 9.4 x 21.77 inch)

NET WEIGHT: 12.23 kg / 26.96 lbs.

PANEL: 4mm Tempered Glass x 2

Color: Exterior & Interior: Black

MATERIAL: SPCC

COOLING SYSTEM

Front (intake) : 200 x 200 x 30mm Addressable RGB fan (600rpm, 29.2dBA) x 2

Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16 dBA)

Drive Bays

-Accessible: 2.5” x 2 or 3.5”x 2 (HDD Rack)

-Hidden: 2.5”x 1(HDD Bracket) ; 2.5” x 2 or 3.5” x 1(HDD Bracket)

EXPANSION SLOTS: 8

MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O Port: USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, RGB Button x 1

PSU: Standard PS2 PSU (optional)

FAN SUPPORT

Front:

2 x 200mm or 1 x 200mm

3 x 120mm or 2 x 120mm or 1 x 120mm

3 x 140mm or 2 x 140mm or 1 x 140mm

Top:

2 x 200mm or 1 x 200mm

3 x 120mm or 2 x 120mm or 1 x 120mm

2 x 140mm or 1 x 140mm

Rear:

1 x 120mm

RADIATOR SUPPORT

Front:

1 x 360mm or 1 x 240mm or 1 x 120mm

1 x 420mm or 1 x 280mm or 1 x 140mm

Top:

1 x 360mm or 1 x 240mm or 1 x 120mm

1 x 280mm or 1 x 140mm

Rear:

1 x 120mm

MB Right:

1 x Pacific DP100-D5 Plus Distro(Without HDD Rack)

CLEARANCE

CPU cooler height limitation: 172mm

VGA length limitation: 282mm(With HDD Rack), 400mm(Without HDD Rack)

PSU length limitation: 220mm
