Description

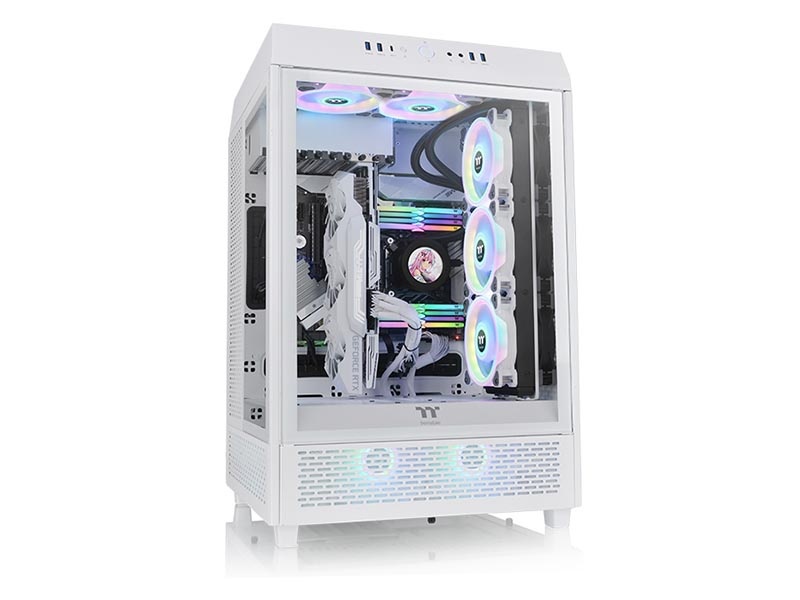

The Tower 500 Snow is a vertically designed case with three 4mm tempered glass panels for panoramic viewing, along with two pre-installed 120mm standard fans. This chassis supports up to 12″ x 12″ E-ATX motherboards giving you comprehensive flexibility for enhanced expansion options. It can also be paired with a separately sold LCD panel kit with a 3.9″ LCD Display for maximizing the PC’s visual effects.

P/N: CA-1X1-00M6WN-00

SERIES: The Tower

CASE TYPE: Mid Tower

DIMENSION (H X W X D): 608 x 388 x 398 mm (23.9 x 15.3 x 15.7 inches)

NET WEIGHT: 14.8 kg / 32.6 lbs.

PANEL: 4mm Tempered Glass x 3

COLOR: White

MATERIAL: SPCC

COOLING SYSTEM: Rear(exhaust):

120 x 120 x 25 mm Standard fan (1500rpm, 35.8 dBA) x 2

DRIVE BAYS: 4 x 3.5”, 8 x 2.5” or 8 x 3.5”

EXPANSION SLOTS: 9

MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 12” (E-ATX)

I/O PORT: USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 4, HD Audio x 1

PSU: Standard PS2 PSU (optional)

FAN SUPPORT: Top:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right Side: 3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Power Cover:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Bottom(Vertical/Horizontal):

2 x 120mm, 1 x 120mm

RADIATOR SUPPORT: Top:

1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Right Side:

1 x 360mm or 1 x 360mm Custom LCS radiator (max length 399mm), 1 x 240mm, 1 x 120mm

Bottom(Vertical/Horizontal):

1 x 240mm, 1 x 120mm

CLEARANCE: CPU cooler height limitation:

275mm

VGA length limitation:

325mm(With power cover)

355mm(Without power cover)

PSU length limitation:

200mm
