Description

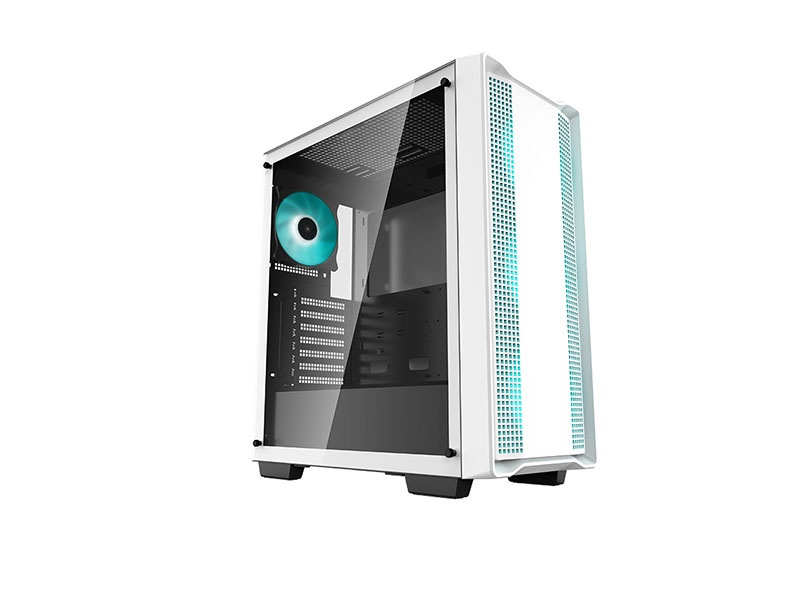

The DeepCool CC560 WH V2 mid-tower case offers great value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that get any build started right. The V2 models build upon the success of the previous generation and raise the bar.

ABUNDANT AIRFLOW PERFORMANCE

Well ventilated throughout the entire chassis, the CC560 WH V2 sports an airflow front panel, support for fans on the PSU shroud, and a large mesh top panel to ensure fresh air is circulating.

PRIMED AND READY

Four pre-installed LED fans deliver big airflow performance, ensuring any system build receives top-notch cooling capacity.

WIDE COOLING SUPPORT

There is enough space to support high-performance AIO liquid coolers, with room for a 360mm radiator in front or 240mm on top. Cooling fan support for up to 8x120mm or 5x140mm fans. The PSU shroud can now support two 120mm fans, providing an extra breath of fresh air to your power-hungry GPU!

COMPATIBILITY

With the ability to support up to E-ATX motherboards, 165mm tall CPU coolers, 320mm GPUs, and 170mm PSUs; the CC560 WH V2 can be configured with a wide range of high end components.

STORAGE SOLUTIONS

Support for 2x 2.5” SSDs and 2x 3.5” HDDs. One of the HDD bays can be utilized for a third 2.5″” drive if the need arises.

Technical Spec

Product Dimensions: 432×215×483mm(L×W×H)

Net Weight: 7.2Kg

Materials: ABS+SPCC+Tempered Glass

Motherboard Support: Mini-ITX / Micro-ATX / ATX

Front I/O Ports: USB3.0×1 / USB2.0×1 / Audio×1

3.5″ Drive Bays: 2

2.5″ Drive Bays: 2+1

Expansion Slots: 7 Slots

Pre-Installed Fans: Front: 3×120mm LED

Rear: 1×120mm LED

Fan Support: Front: 3×120 / 3×140mm

Top: 2×120 / 2×140mm

Rear: 1×120mm

PSU Shrouded: 2×120mm

Radiator Support: Front: 120/140/240/280/360mm

Top: 120/140/240mm

Rear: 120mm

CPU Cooler Height Limit: 165mm

GPU Length Limit: 320mm

Power Supply Type: ATX PS2 （maximum length: 170mm）

EAN: 6933412774600

P/N: R-CC560-WHGAA4-G-2
