Description

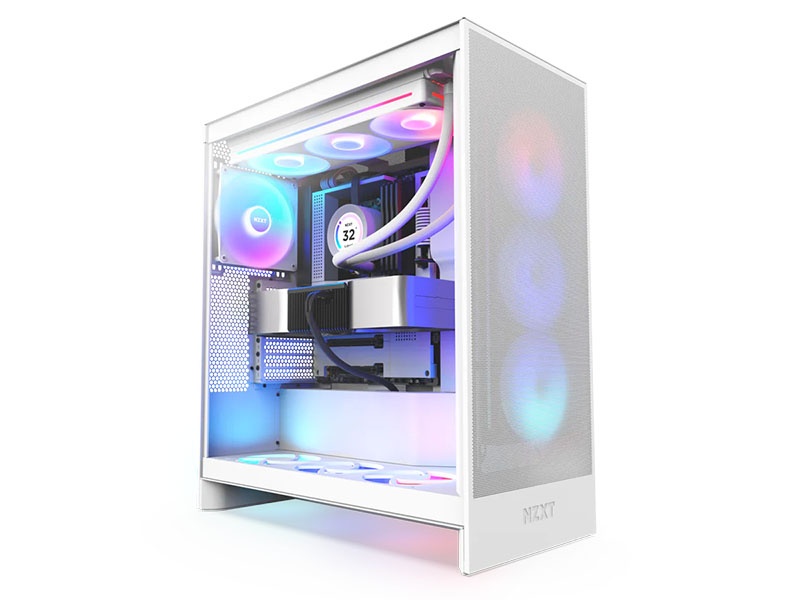

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

Tech Specs

Key Specs

Motherboard Support: E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX

Enclosure Type: Mid-Tower

Case Material: SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

Height (With Feet): 544 mm

Width: 244 mm

Depth: 468 mm

Weight: 11.13 kg

Compatibility & Clearance

CPU Cooler Height: Up to 185mm

GPU Length: Up to 410 mm

PSU Length: Up to 200 mm

Cable Management: Up to 34.5 mm

Top Mounted Radiator & Fan Combined Thickness: Up to 57 mm (140mm / 280mm)

Front I/O Ports

USB 3.2 Gen 1 Type-A: 2

USB 3.2 Gen 2×2 Type-C (20 Gbps): 1

Headset Audio Jack: 1

Expansion Slots

Standard: 7

Vertical: 0

Drive Bays

2.5″: 2+2

3.5″: 2

Fan Support

Front: 3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)

Top: 3 x 120 mm / 2 x 140 mm

Bottom: 3 x 120 mm

Rear: 1 x 120 mm / 1 x 140 mm

Filters: High-Performance Mesh

Radiator Support

Front: Up to 420 mm

Top: Up to 360mm

Rear: Up to 140mm

Fan Specs – F360 RGB Core (Case Version)

Model: F360 RGB Core Fan (Case Version)

Speed: 1,700 ± 200 RPM

Airflow: 50.1 CFM

Static: 1.27 mm-H₂O

Noise: 23.3 dBA

Fan Connector: 3-pin DC
