Description

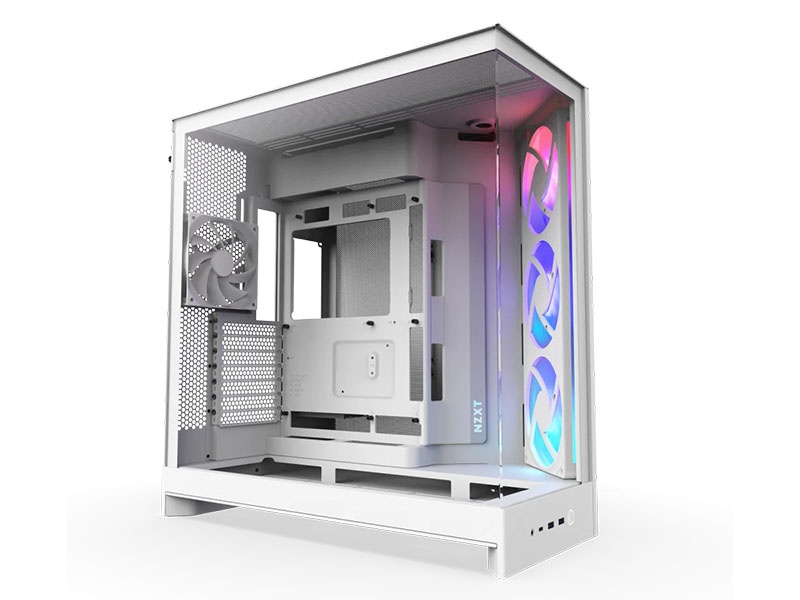

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.

Tech Specs

Dimensions

Height: 506 mm (19.9 in)

Width: 315 mm (12.4 in)

Depth: 481 mm (18.9 in)

Volume: 76.7 L

Weight: 12.6 kg (27.78 lb)

General

Enclosure Type: Mid-tower

Motherboard Compatibility: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX

Rear-Connecting Motherboard Support (BTF, Project Zero): Yes (ATX)

Materials: SGCC steel, clear tempered glass (white), tinted tempered glass (black)

Clearance

CPU Cooler Height: 165 mm

GPU Length: Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right) PSU Length: 200 mm Top Radiator & Fan Thickness: Up to 80 mm (360 mm) Up to 62 mm (420 mm) Front I/O Ports USB 3.2 Type-A: 2 USB 3.2 Gen2x2 Type-C: 1 Headset Jack: 1 Expansion Slots Standard: 7 Vertical: 0 Drive Bays 2.5": 4+2 3.5": 2 Fan Support Front-Right: 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included) Top: 3 x 120 mm / 3 x 140 mm Bottom: 3 x 120 mm / 3 x 140 mm Rear: 1 x 120 mm (1 x F120Q (CV) included) Radiator Support Front-Right: Up to 420 mm Top: Up to 420 mm Bottom: Up to 360 mm Rear: Up to 120 mm Fan Specs - F420 RGB Core Model: F420 RGB Core Speed: 2,000 ± 200 RPM Airflow: 98.61 CFM Static Pressure: 3.2 mmH2O Noise: 34.5 dBA Fan Connector: 8-pin w/ splitter Fan Specs - F120Q (CV) Model: F120Q (CV) Speed: 1,350 ± 150 RPM Airflow: 60.2 CFM Static Pressure: 1.05 mmH2O Noise: 24.1 dBA Fan Connector: 3-pin
