Description

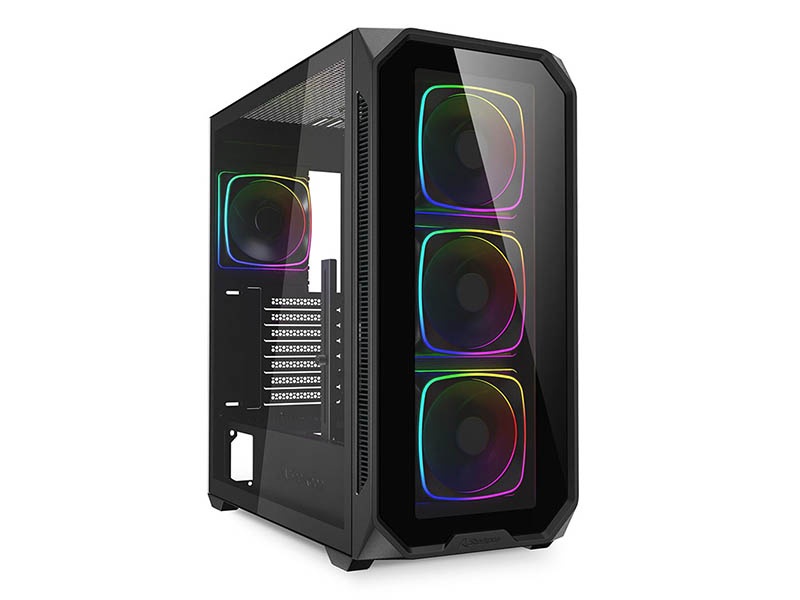

With its futuristic look, including the tempered-glass side and front, the AK5G RGB is the ultimate home for high-end hardware which has to be seen. The inside of this ATX case has been spaciously designed and offers room for up to eleven fans or two radiators. In addition, modern input-output connections and support for the new BTF mainboards will all ensure that the case stays future-proof.

General

Form Factor: ATX

Expansion Slots: 7

Interior Painting: Yes

Tool-Free Devices Installation: Yes

Cable Management System: Yes

Side Panel: Tempered Glass

VGA Holder: Yes

Weight & Dimensions

Weight: 7 kg

Dimensions (L x W x H): 46.5 x 22.5 x 48.5 cm

RGB Compatibility

Type: Addressable

Ports: 4

Manual Control: 22 Modes

Mainboard Compatibility: MSI Mystic Light Sync, ASUS Aura Sync, Gigabyte RGB Fusion Ready, ASRock Polychrome Sync

RGB pinout: 5V-D-coded-G

Max. Drive Bays

3.5″: 2

2.5″: 4

I/O

Type-C (USB 3.2 Gen 2): 1

USB 3.0 (Top): 2

Audio (Top): TRRS

Fan Configuration

Front Panel: 3x 120 mm Addressable RGB LED PWM Fan (Pre-Installed) or Radiator (Optional)

Side Panel: 2x 120 mm or 2x 140 mm Fan or Radiator* (Optional)

Rear Panel: 1x 120 mm Addressable RGB LED PWM Fan (Pre-installed)

Top Panel: 3x 120 mm or 2x 140 mm Fan or Radiator (Optional)

Bottom Panel: 2x 120 mm Fan (Optional)

PWM Fan Hub: 4-Port

Compatibility

Mainboard: Mini-ITX, Micro-ATX (BTF), ATX (BTF)

Max. Length Graphics Cards: 41.0 cm

Max. Height CPU Cooler: 17.0 cm

Max. Length PSU: 23.5 cm

Max. Height Radiator incl. Fan (Front): 6.0 cm

Max. Height Radiator incl. Fan (Top): 6.0 cm

Package Contents:

AK5G RGB

Accessory Set

Note

* A graphics card length of more than 26 cm may conflict with radiator installation on side panel
