Description

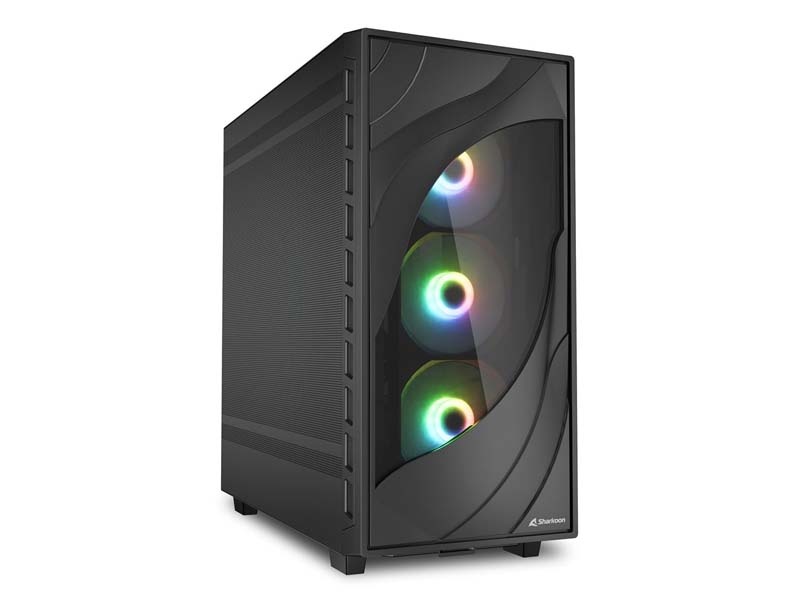

Made for your best gaming moments: The spacious Rebel C80M RGB ATX case combines a striking front-panel design with plenty of space for high-end hardware. A good airflow is ensured thanks to the perforated paneling combined with up to eleven fans or two radiators, while the detachable mounting frame and mounting bracket facilitate the installation of components. A graphics card holder and modern connections for smartphones and tablets are also included!

General

Form Factor: ATX

Expansion Slots: 7

Interior Painting: Yes

Cable Management System: Yes

Side Panel: Metal

VGA Holder: Yes

Weight & Dimensions

Weight: 8.6 kg

Dimensions (L x W x H): 48.9 x 23.0 x 49.5 cm

RGB Compatibility

Type: Addressable

Ports: 8

Manual Control: 22 Modes

Mainboard Compatibility: MSI Mystic Light Sync, ASUS Aura Sync, Gigabyte RGB Fusion Ready, ASRock Polychrome Sync

RGB pinout: 5V-D-coded-G

Max. Drive Bays

3.5″: 3

2.5″: 3

I/O

Type-C (USB 3.2 Gen 2): 1

USB 3.0 (Top): 2

Audio (Top): TRRS

Fan Configuration

Front Panel: 3x 120 mm Addressable RGB LED PWM Fan (Pre-installed) or 3x 140 mm Fan (Optional)

Side Panel: 4x 120 mm Fan* or Radiator (Optional)

Rear Panel: 1x 120 mm Addressable RGB LED PWM Fan (Pre-Installed)

Top Panel: 3x 120 mm Fan or 2x 140 mm Fan or Radiator (Optional)

Compatibility

Mainboard: Mini-ITX, Micro-ATX, ATX

Max. Length Graphics Cards: 40.0 cm

Max. Height CPU Cooler: 16.5 cm

Max. Length PSU: 27.0 cm

Max. Height Radiator incl. Fan (Top): 6.0 cm

Package Contents

Rebel C80M RGB

Accessory Set

Note: * 1x 120 mm fan has same installation space for 1x HDD
