Description

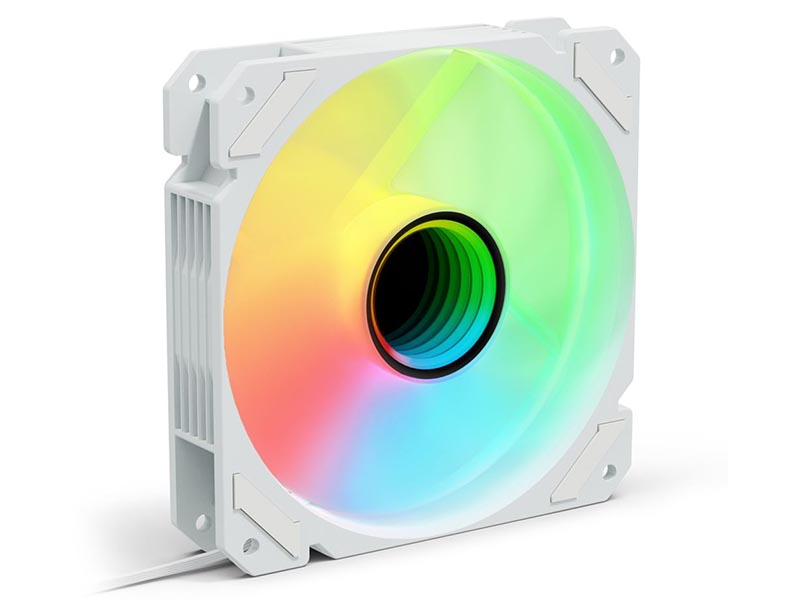

The SHARK Mirror PWM RGB is a powerful, RGB-illuminated fan that delivers precise performance within a speed range of 500 to 1,500 rpm. If needed, there is even a REVERSE edition available with – as the name suggests – a reversed airflow. In addition, thanks to the infinity mirror effect, the fan looks especially stylish in any PC case.

General

Fan Speed: 500 – 1,500 rpm ± 10 %

Bearing Type: Fluid Dynamic Bearing

Max. Airflow: 99.52 m³/h

Max. Air Pressure: 1.23 mmH₂O

Noise Level: 26.8 Db(A)

MTBF: Min. 50,000 Hours

Illumination: 8x Addressable RGB LED

Weight incl. Fixed Cable: 130 g

Dimensions (L x W x H): 120 x 120 x 25 mm

Cable and Connectors

Fan Connector: 4-Pin PWM

LED Connector: 4-Pin (5V-D-coded-G)

Fan Cable Length: 600 mm

LED Cable Length: 600 mm

Electrical Specifications

Rated Voltage (Fan): 12 V

Rated Voltage (LEDs): 5 V

Rated Current (Fan): 0.19 A

Rated Current (LEDs): 0.27 A

Rated Power (Fan): 2,28 W

Rated Power (LEDs): 1.35 W

Start Voltage: 7 V

Package Contents:

SHARK Mirror PWM RGB White

Set with Fan Screws
