Description

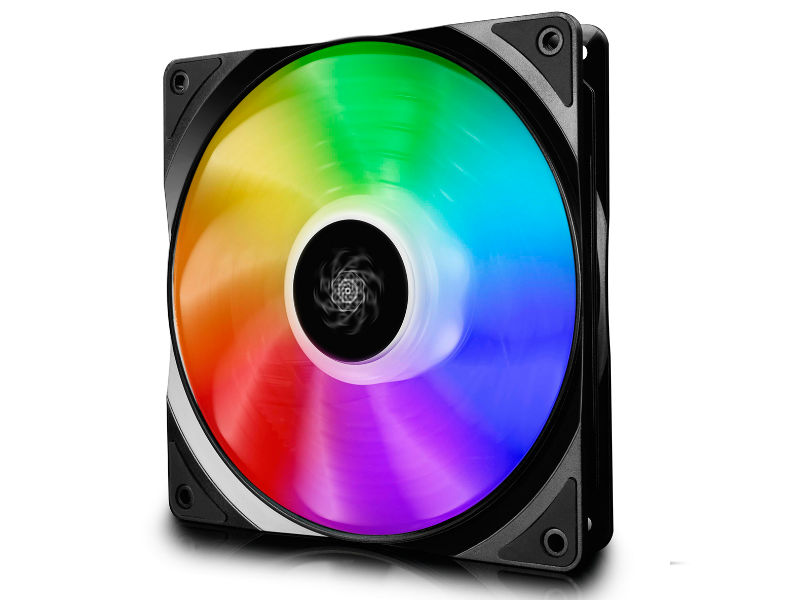

Utilize 12pcs of independently programmable RGB LEDs for amazing display effects

*Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices

Fan speed can be intelligently controlled by MB in accordance with temperature

Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan

*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, Gigabyte

Technical Spec

Fan Dimension: 140X140X26mm

Net Weight: 198g

Fan Speed: 500±200 -1200±10%RPM

Fan Air Flow: 64.13CFM

Fan Air Pressure: 1.09mmH2O

Fan Noise Level: 19.8~24dB(A)

Fan Connector: 4Pin

FAN Rated Voltage: 12VDC

FAN Operating Voltage: 10.8～13.2VDC

FAN Starting Voltage: 7VDC

FAN Rated Current: 0.02±15%A-0.09±10%A

FAN Power Input: 1.08W

Bearing Type: Hydro Bearing

LED Type: Addressable RGB LED

LED Rated Voltage: 5VDC

LED Rated Current: 0.48±10%A

LED Rated Power: 2.4W

LED Connector: 3pin（+5V-D-G）

LED Control: M/B with 5V ADD-RGB Header
