Description

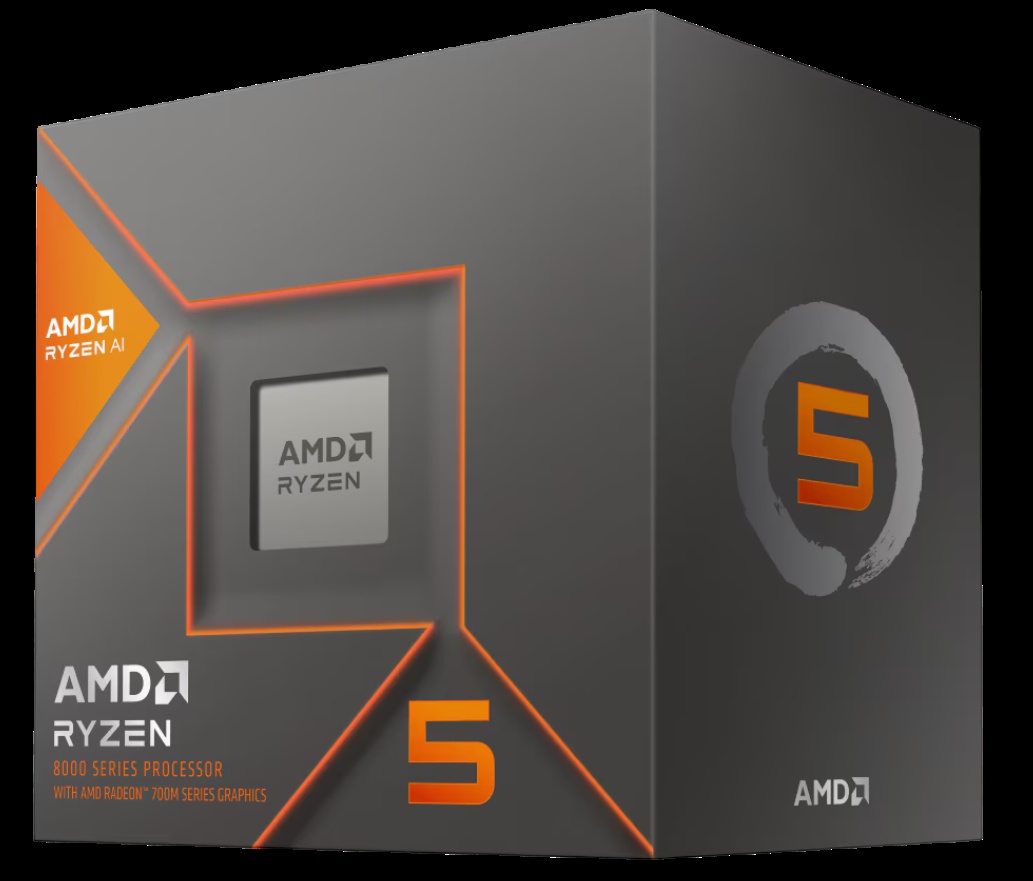

Name: AMD Ryzen™ 5 8600GForm Factor: DesktopsAMD PRO Technologies: NoFormer Codename: PhoenixArchitecture: Zen 4# of CPU Cores: 6Multithreading (SMT): Yes# of Threads: 12Max. Boost Clock: Up to 5 GHzBase Clock: 4.3 GHzL2 Cache: 6 MBL3 Cache: 16 MBDefault TDP: 65WAMD Configurable TDP (cTDP): 45-65WProcessor Technology for CPU Cores: TSMC 4nm FinFETCPU Compute Die (CCD) Size: 178mm²Package Die Count: 1Unlocked for Overclocking: YesAMD EXPO™ Memory Overclocking Technology: YesPrecision Boost Overdrive: YesCurve Optimizer Voltage Offsets: YesAMD Ryzen™ Master Support: YesCPU Socket: AM5Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850CPU Boost Technology: Precision Boost 2Instruction Set: x86-64Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3Max. Operating Temperature (Tjmax): 95°CNative USB 4 (40Gbps): 2Native USB 3.2 Gen 2 (10Gbps): 2Native USB 2.0 (480Mbps): 1PCI Express® Version: PCIe® 4.0Native PCIe® Lanes (Total/Usable): 20, 16NVMe Support: Boot, RAID0, RAID1System Memory Type: DDR5Memory Channels: 2Max. Memory: 256 GBSystem Memory Subtype: UDIMMMax Memory Speed: DDR5-5200 (2x1R, 2x2R), DDR5-3600 (4x1R, 4x2R)Graphics Model: AMD Radeon™ 760MGraphics Core Count: 8Graphics Frequency: 2800 MHzDirectX® Version: 12DisplayPort Extensions: Adaptive-Sync, HDR Metadata, UHBR10DisplayPort Max Refresh Rates (SDR): 7680×4320 @ 60Hz, 3840×2160 @ 240Hz, 3440×1440 @ 360Hz, 2560×1440 @ 480Hz, 1920×1080 @ 600HzDisplayPort Max Refresh Rates (HDR): 7680×4320 @ 60Hz, 3840×2160 @ 240Hz, 3440×1440 @ 360Hz, 2560×1440 @ 480Hz, 1920×1080 @ 600HzHDMI® Version: 45659HDCP Version Supported: 45718USB Type-C® DisplayPort™ Alternate Mode: YesMulti-Monitor Support: YesMax Displays: 4AMD FreeSync™: YesWireless Display: MiracastMax Video Encode Bandwidth (SDR): 1080p630 H.264, 1440p373 H.264, 2160p175 H.264, 1080p630 H.265, 1440p373 H.265, 2160p175 H.265, 4320p43 H.265, 1080p864 AV1, 1440p513 AV1, 2160p240 AV1, 4320p60 AV1Max Video Decode Bandwidth: 1080p60 MPEG2, 1080p60 VC1, 1080p786 VP9, 2160p196 VP9, 4320p49 VP9, 1080p1200 H.264, 2160p300 H.264, 4320p75 H.264, 1080p786 H.265, 2160p196 H.265, 4320p49 H.265, 1080p960 AV1, 2160p240 AV1, 4320p60 AV1AMD SmartAccess Memory: AvailableBrand Name: AMD Ryzen™ AIAMD Ryzen™ AI: AvailablePerformance: Up to 16 TOPS
