Description

Features

High-Speed Connectivity

• Wireless AC technology to deliver fast wireless

connectivity with increased range and reliability1

• 10/100 Fast Ethernet WAN port for speedy

Internet access

• Four 10/100 Fast Ethernet LAN ports give you

high-speed wired connectivity

Flexible Bandwidth

• Combined dual band wireless speed of up to

750 Mbps1

• QoS engine for prioritising important traffic and

delivering uninterrupted bandwidth

Setup and Management

• Web browser-based setup and configuration

• Intuitive setup wizard to guide you through the

configuration process

• Firewall and access control options to prevent

attacks and restrict access to your network

General

Hardware Version • B1

Device Interfaces • IEEE 802.11ac/n/g/b/a wireless LAN1

• 10/100 Fast Ethernet WAN port

• Four 10/100 Fast Ethernet LAN ports

LEDs • Power

• 5 GHz WLAN

• 2.4 GHz WLAN

• Internet

• WPS

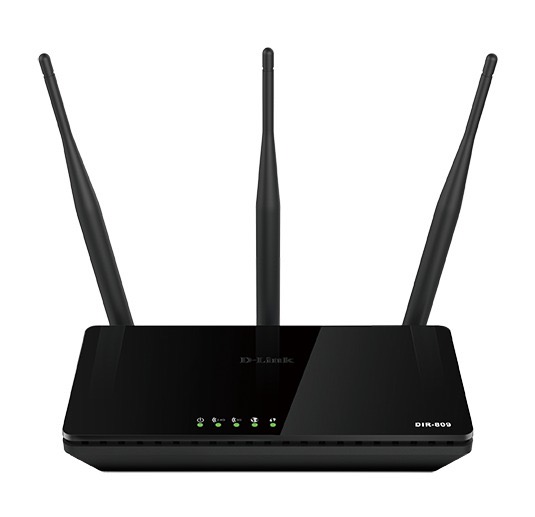

Antenna Type • Three external antennas

Data Signal Rate • 2.4 GHz

• Up to 300 Mbps1

• 5 GHz

• Up to 433 Mbps1

Standards • IEEE 802.11ac/n/g/b/a • IEEE 802.3u

Minimum Requirements • Internet Explorer 9, Firefox 20, Chrome 25, Safari 5.1 or

higher

• Wired or Wireless Ethernet network adapter

• Cable/DSL modem or other Internet Service Provider

equipment with Ethernet port and an active Internet

subscription

Functionality

Security • WPA & WPA2 (Wi-Fi Protected Access) • WPS (Wi-Fi Protected Setup)

Advanced Features • Web setup wizard

• QoS (Quality of Service)

• DMZ (Demilitarized Zone)

• Repeater mode

• Firewall – Network Address Translation (NAT)

• Guest zone

• IPv6 functionality

• Multicast support

Physical

Dimensions • 192 x 108 x 30 mm (7.56 x 4.25 x 1.8 inches)

Weight • 240 grams (8.5 ounces)

Power • Input: 100 to 240 V AC, 50/60 Hz • Output: 12 V DC, 0.5 A

Temperature • Operating: 0 to 40 °C (32 to 104 °F) • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity • Operating: 10% to 90% non-condensing • Storage: 5% to 95% non-condensing
