DESCRIPTION

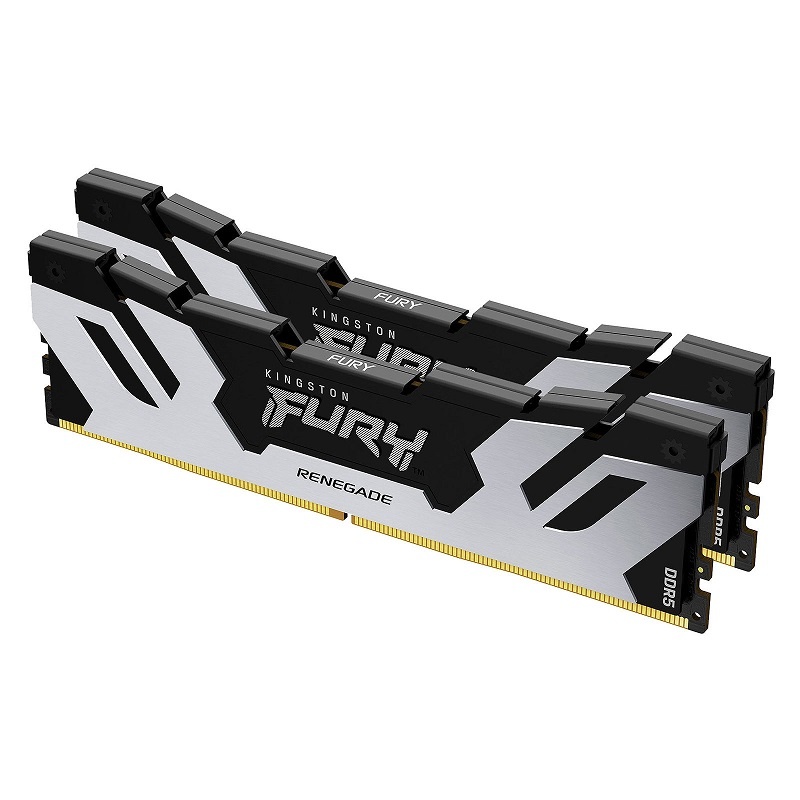

Kingston FURY KF564C32RSK2-32 is a kit of two 2G x 64-bit

(32GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 1Rx8,

memory module, based on eight 2G x 8-bit FBGA components per

module. Each module kit supports Intel® Extreme Memory

Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each

module has been tested to run at DDR5-6400 at a low latency timing

of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC

standard latency DDR5-4800 timing of 40-39-39 at 1.1V.

Each 288-pin DIMM uses gold contact fingers.

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

• XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V

• XMP Profile #2: DDR5-6000 CL38-38-38 @1.35V

• XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V

SPECIFICATIONS

CL(IDD) – 40 cycles

Row Cycle Time (tRCmin) – 48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin) – 295ns(min.)

Row Active Time (tRASmin) – 32ns(min.)

UL Rating – 94 V – 0

Operating Temperature – 0°C to +85°C

Storage Temperature – -55°C to +100°C

FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.54” (39.2mm), w/heatsink
