Description

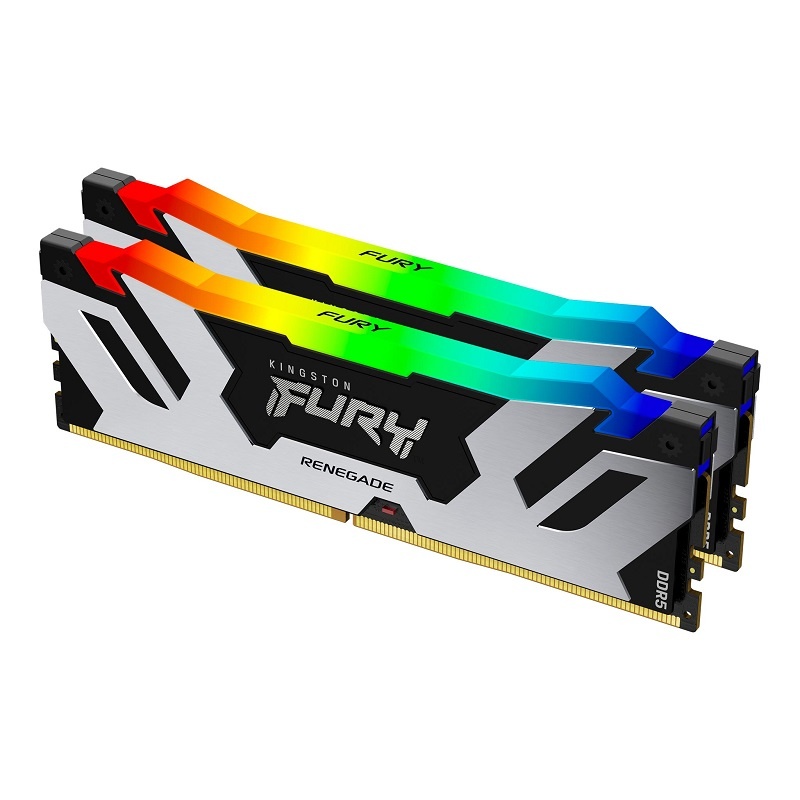

Kingston FURY KF580C38RSAK2-32 is a kit of two 2G x 64-bit (32GB) DDR5-8000 CL38 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-8000 at a low latency timing of 38-48-48 at 1.45V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

SPECIFICATIONS

CL(IDD) – 40 cycles

Row Cycle Time (tRCmin) – 48ns(min.)

Refresh to Active/Refresh; Command Time (tRFCmin) – 295ns(min.)

Row Active Time (tRASmin) – 32ns(min.)

UL Rating – 94 V – 0

Operating Temperature – 0°C to +85°C

Storage Temperature – -55°C to +100°C

FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.73” (44.00mm), w/heatsink
