Description

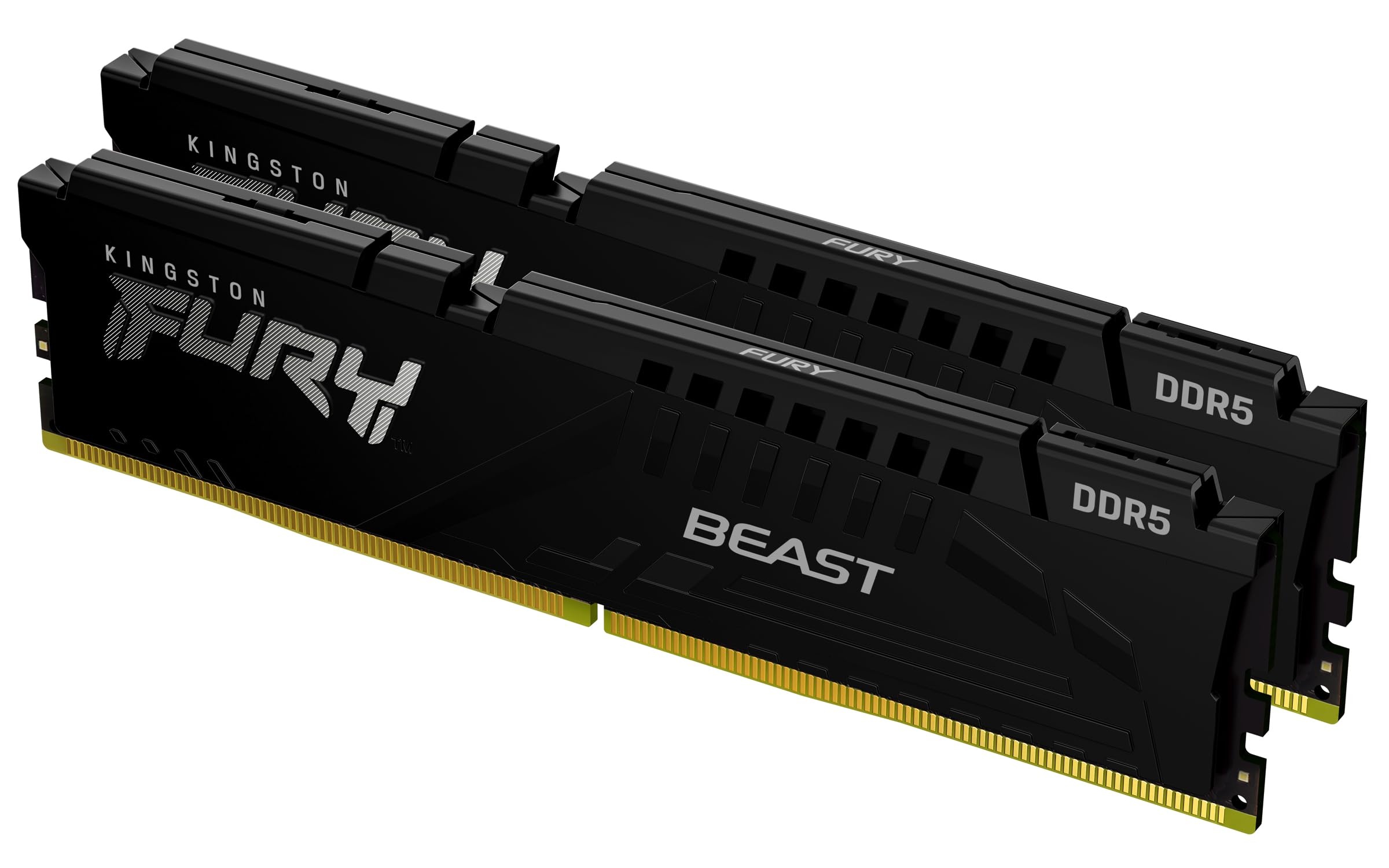

Kingston FURY KF564C32BBEK2-64 is a kit of two 4G x 64-bit

(32GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8,

memory module, based on sixteen 2G x 8-bit FBGA components per

module. Each module kit supports AMD® EXPO v1.1 and

Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit

capacity is 64GB. Each module has been tested to run at

DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs

are programmed to JEDEC standard latency DDR5-4800

timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold

contact fingers

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

• EXPO Profile #0: DDR5-6400 CL32-39-39 @1.4V

• EXPO Profile #1: DDR5-6000 CL30-36-36 @1.4V

• XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V

• XMP Profile #2: DDR5-6000 CL30-36-36 @1.4V

CL(IDD) 40 cycles

Row Cycle Time (tRCmin) 48ns(min.)

Refresh to Active/Refresh 295ns(min.)

Command Time (tRFCmin) 32ns(min.)

UL Rating 94 V – 0

Operating Temperature – 0°C to +85°C

Storage Temperature -55°C to +100°C

DEFAULT FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.37” (34.9mm), w/heatsink
