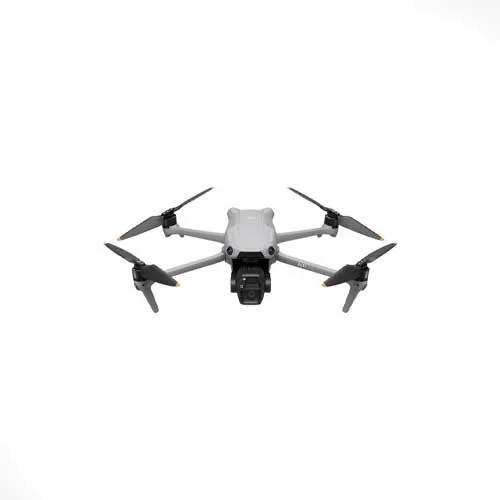

Description

24mm & 70mm Dual-Camera System
• 4K120, 4K60 HDR, or 2.7K Vertical Video
• 10-Bit D-Log M & HLG Color Modes
• Forward-Facing LiDAR Sensor
• Day & Night Omnidirectional Avoidance
• Smart Non-GPS & Night RTH Modes
• Up to 45 Minutes of Flight Time
• O4 1080p 60 12.4-Mile Transmission
• Multiple Pre-Programmed Flight Modes
• Fly More Accessories with RC 2 Remote

Aircraft Specifications
• Takeoff Weight: 724 g
• Dimensions:
o Folded (without propellers): 214.19×100.63×89.17 mm (L×W×H)
o Unfolded (without propellers): 266.11×325.47×106.00 mm (L×W×H)
• Max Speed:
o Ascent: 10 m/s
o Descent: 10 m/s
o Horizontal:
 21 m/s (windless conditions at sea level)
 27 m/s (6 m/s tailwind at sea level)
 19 m/s (EU region)
• Max Takeoff Altitude: 6000 m
• Max Flight Time: 45 minutes
• Max Hovering Time: 41 minutes
• Max Flight Distance: 32 km
• Max Wind Speed Resistance: 12 m/s
• Max Pitch Angle: 36°
• Operating Temperature: -10° to 40° C (14° to 104° F)
• GNSS: GPS + Galileo + BeiDou
• Hovering Accuracy Range:
o Vertical: ±0.1 m (vision positioning), ±0.5 m (satellite positioning)
o Horizontal: ±0.3 m (vision positioning), ±0.5 m (satellite positioning)
• Internal Storage: 42 GB
• Class: C1 (EU)

Camera Specifications
• Image Sensors:
o Wide-Angle: 1-inch CMOS, 50MP
o Medium Tele: 1/1.3-inch CMOS, 48MP
• Lenses:
o Wide-Angle: 84° FOV, 24 mm, f/1.8, Focus: 0.5 m to ∞
o Medium Tele: 35° FOV, 70 mm, f/2.8, Focus: 3 m to ∞
• ISO Range:
o Video Normal: 100-12800 (Normal), 100-3200 (D-Log M, HLG)
o Photo: 100-6400 (12 MP), 100-3200 (48 MP, 50 MP)
• Shutter Speed:
o Wide-Angle: 1/8000-2 s (12MP); 1/8000-2 s (50MP)
o Medium Tele: 1/16000-2 s (12MP); 1/8000-2 s (48MP)
• Max Image Size:
o Wide-Angle: 8192×6144
o Medium Tele: 8064×6048
• Photography Modes:
o Wide-Angle Camera: Single Shot (12 MP, 50 MP), Burst (3/5/7 frames), Timed (2/3/5/7/10/15/20/30/60 s)
o Medium Tele Camera: Single Shot (12 MP, 48 MP), Burst (3/5/7 frames), Timed (2/3/5/7/10/15/20/30/60 s)
• Photo Format: JPEG/DNG (RAW)
• Video Resolution: 4K (3840×2160@24-120fps), FHD (1920×1080@24-240fps), 2.7K Vertical Shooting (1512×2688@24-60fps)
• Video Format: MP4 (H.264/H.265), max bitrate 130 Mbps
• Digital Zoom: Wide-Angle (1-2.9x), Medium Tele (3-9x)

Gimbal
• Stabilization: 3-axis (tilt, roll, pan)
• Mechanical Range: Tilt (-135° to 70°), Roll (-50° to 50°), Pan (-27° to 27°)
• Controllable Range: Tilt (-90° to 60°), Pan (-5° to 5°)
• Max Control Speed (Tilt): 100°/s
• Angular Vibration Range: ±0.0037°
________________________________________
Sensing & Obstacle Avoidance
• Sensing Type: Omnidirectional binocular vision, forward-facing LiDAR, downward infrared sensor
• Measurement Range:
o Forward/Backward: 0.5-18 m
o Lateral: 0.5-30 m
o Upward: 0.5-18 m
o Downward: 0.3-14 m
________________________________________
Transmission & Communication
• Transmission System: O4
• Live View Quality: 1080p/30fps, 1080p/60fps
• Operating Frequency: 2.4 GHz, 5.1 GHz, 5.8 GHz (varies by region)
• Max Transmission Distance: FCC (20 km), CE (10 km), SRRC/MIC (10 km)
• Max Download Speed: O4 (10 MB/s), Wi-Fi 5 (30 MB/s)
• Lowest Latency: Approx. 120 ms
• Antenna: 6 antennas, 2T4R
• Wi-Fi Protocol: 802.11 a/b/g/n/ac
• Bluetooth: Bluetooth 5.2
________________________________________
Battery & Charging
• Battery:
o Capacity: 4276 mAh
o Voltage: 14.6 V, Type: Li-ion 4S
o Energy: 62.5 Wh
o Charging Time: 80 minutes (65W charger), 60 minutes (100W adapter)
• Charger Input/Output:
o 65W Charger: 5-20 V, 3.25 A
o 100W Adapter: Max 100 W, with 82 W per port (dynamic allocation)
________________________________________
Remote Controller (DJI RC-N3)
• Max Operating Time: 3.5 hours (without charging device), 1.5 hours (charging device)
• Operating Temperature: -10° to 40° C (14° to 104° F)
• Charging Time: 2 hours
• Supported Device Size: 180×86×10 mm
