Description

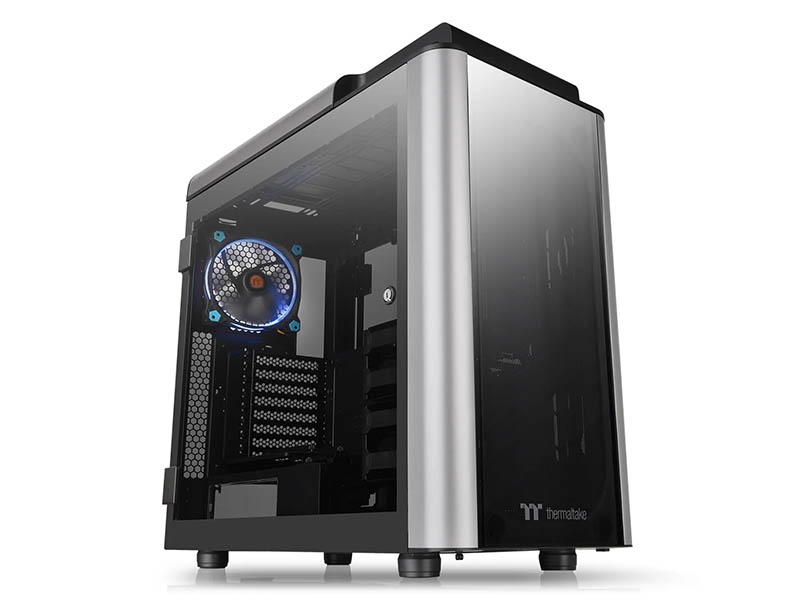

E-ATX full tower chassis with four tempered glass windows and one preinstalled Riing 14 LED fan.

P/N: CA-1K9-00F1WN-00

Series: Level 20

Model: Level 20 GT

CASE TYPE: Full Tower

Dimension (H x W x D): 580 x 294 x 592 mm (22.9 x 11.6 x 23.3 inch)

NET WEIGHT: 19.1 kg / 42.10 lb

PANEL: 5mm Tempered Glass x 4 (Left & Right & Front & Top)

Color: Exterior & Interior : Black

MATERIAL: SPCC

COOLING SYSTEM

Front (intake) : 140 x 140 x 25 mm Riing fan (1400rpm, 28dBA)

Drive Bays

-Accessible

2.5” x 4 or 3.5” x 4 (HDD Rack)

2.5” x 4 or 3.5” x 2 (HDD Bracket)

-Hidden

2.5” x 2 or 3.5” x 1 (Without HDD Rack)

EXPANSION SLOTS: 8

MOTHERBOARDS: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX)

I/O Port: USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Type-C x 1

PSU: Standard PS2 PSU (optional)

FAN SUPPORT

Front:

3 x 120mm, 3 x 140mm, 2 x 200mm

Top:

3 x 120mm, 3 x 140mm, 2 x 200mm

Rear:

1 x 120mm, 1 x 140mm

Bottom:

2 x 120mm

RADIATOR SUPPORT

Front:

1 x 360mm, 1 x 420mm, 1 x 360mm(For 200mm fan)

Top:

1 x 360mm, 1 x 360mm(For 200mm fan)

Rear:

1 x 120mm, 1 x 140mm

Right:

1 x 360mm, 1 x 420mm (AIO: 1 x360mm, 1 x 280mm)

Bottom:

1 x 240mm

CLEARANCE

CPU cooler height limitation: 200mm

VGA length limitation: 310mm(With HDD Rack), 410mm(Without HDD Rack)

PSU length limitation: 220mm (Without Bottom Fan)
