Description

Product specification:

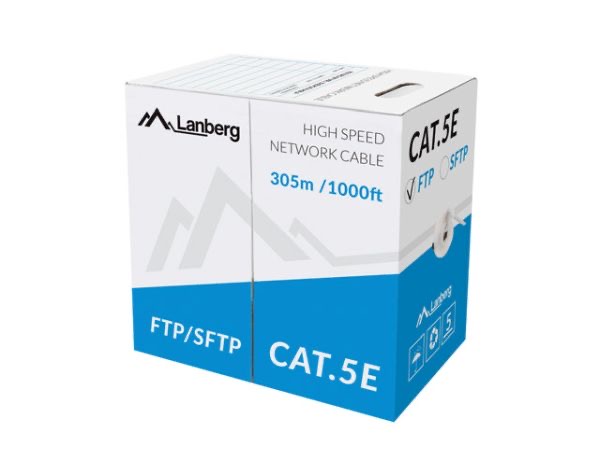

– LAN cable

– Data transmission rate: 100Mb/s

– Shielding: F/UTP (foil shielding)

– Length 305m.

– The wires are made of copper conductor cable (CCA).

– AWG 24 (4*2*0.5mm).

– Conductor stranding: single wire.

– Color: grey RAL7035.

– Printed length counter at every meter of cable.

– External PVC insulation: 5.6mm.

– HDPE conductor insulation: 0.93mm.

– Operation up to 100Mhz.

– Package: cardboard box.

– Packaging dimensions (W x D x H): 36x23x36 cm.

Electrical characteristics (20 degrees):

– Conductor resistance (max.): 23 – 30Om / 305m.

– Insulation resistance (min.): 5000mOm km.

– Pair-to-Ground capacitance: < 330PF / 100m. - Characteristic impedance: < 100Om (+/- 15). - Transport and storage temperature: 0 - 60 degrees. - Operating temperature: -20 - 70 degrees. - Working distance: 80 - 120m. PURPOSE: Cable only for division into shorter sections (up to 10m). Only for installation without fluke certification requirement (EN 50173).
