Description

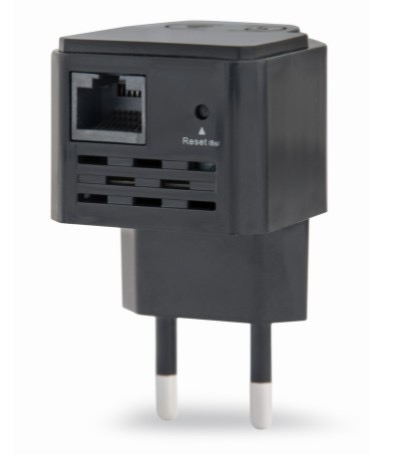

•Compact 300 Mbps WiFi repeater with integrated antennas

•Supports all IEEE 802.11b/g/n WiFi standards (2.4GHz networks)

•Up to 300 Mbps data transfer rate via the wireless 802.11n protocol

•Maximum WLAN security with WPA2, WPA and WEP(128/64)

•Quick setup via easy to use web-interface or WPS function

•Can be setup as wireless repeater or as access point

•Practical LAN port and LED status indication

Supported standards: IEEE 802.3, 802.3u, 802.11b/g/n

Wireless transmission rate: max. 300 Mbps

Security : 64/128-bit WEP, WPA-PSK, WPA2-PSK,WPA -MIXED-PSK

Supported modes: repeater mode, AP mode

Ports: 1 x 10/100M RJ45

Chipset: MT7628KN

Frequency band: 2.412~2.484 GHz

Channels: 1-13 (Europe)

Power class: RF power up to 20 dBm (max. EIRP)

Internal antenna gain (typical): 2x 3 dBi ±1 dBi

Power consumption: up to 2.5 W, input 100 – 240 VAC 50/60 Hz

Dimensions: 40 x 40 x 68 mm (W x D x H)

Net weight: 44 g

Operating temperature: 0 ~ 40 °C

Storage temperature: -40 ~ 70 °C

Operating humidity: 10 ~ 90% non-condensing

Storage humidity: 5 ~ 95% non-condensing
