Beautiful Sound That Speaks To You

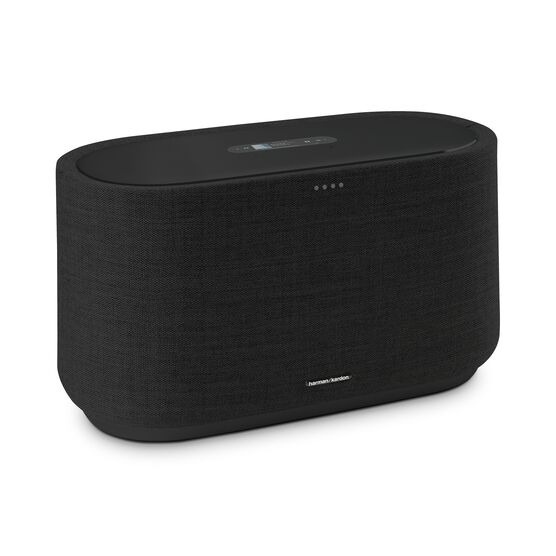

The Harman Kardon Citation 500 is a next generation stereo smart speaker designed for large rooms. Easy to use with its full-color LCD touch screen, Citation 500 blends innovation in home audio with attention to detail in design, allowing for sophisticated looks and powerful sound. Music lovers will love the full-range, detailed sound with access to over 300 music services and high-definition streaming through Chromecast built-in. The Google Assistant brings convenient voice control to your Citation 500 for hands-free help around the home. Get answers, play music, organize your day, control your smart home, enjoy your entertainment and more, just with your voice!

General Specifications

Power Supply

100-240V – 50/60Hz

Power consumption in sleep mode

<2.0 Watts Bluetooth® version 4.2 Bluetooth transmitter frequency range 2402 – 2480MHz Bluetooth transmitter power <10dBm Bluetooth transmitter modulation GFSK,π/4 DQPSK, 8DPSK Wireless network 802.11 a/b/g/n/ac (2.4GHz/5GHz) 2.4G Wi-Fi transmitter frequency range 2412 – 2472MHz (2.4GHzISM Band, USA 11 Channels, Europe and others 13 Channels) 2.4G Wi-Fi transmitter power <20dBm 2.4G Wi-Fi modulation DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM 5G Wi-Fi transmitter power <23dBm 5G Wi-Fi modulation QPSK, BPSK, 16QAM, 64QAM, 256QAM 5G Wi-Fi transmitter frequency range 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz Note CITATION 500 is intended to be used for streaming music. A consumer can stream Bluetooth audio to the speaker. A consumer can connect their speaker to the localWi-Fi Network and stream music with Google Chromecast. In addition, the speaker will work with Google Home. This product is designed to be instantly on and ready to play music at a moment's notice, therefore, the Bluetooth andWi-Fi connection must remain active at all times to ensure proper operation. CITATION 500 is in compliance with the European Union energy legislation. CITATION 500 will enter into sleep mode (networked standby) after 20 minutes without operation, after which it can be re-activated via Bluetooth or Wi-Fi. Audio Specifications Signal-to-noise ratio >80dB

Supported audio formats

HE-AAC, LC-AAC, MP3, Vorbis, WAV (LPCM), FLAC, Opus

Output power

200W RMS

Transducer

2 x 25mm tweeter, 2 x 131mm woofer

Dimensions

Dimensions (W x H x D)

374 x 212 x 172 mm

Weight

7.6 kg (16.8lb)

What’s in The Box?

1 x Citation 500

1 x power cable (1.8m)

1 x Quick-start guide

1 x Warranty sheet

1 x Safety sheet
