Description

Specifications

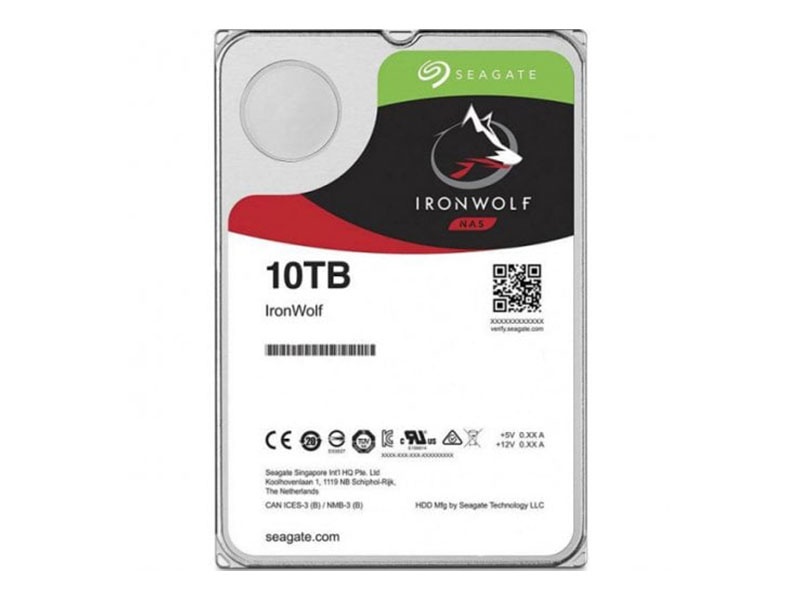

Capacity: 10TB

Standard Model Number: ST10000VN000

Interface: SATA 6Gb/s

Features and Performance

Drive Bays Supported: 1 – 8 Bays

Recording Technology: CMR

Drive Design (Air or Helium): Air

Workload Rate Limit (WRL): 180

Rotational Vibration (RV) Sensor: Yes

Dual-Plane Balance: Yes

Error Recovery Control: Yes

Max. Sustained Transfer Rate OD (MB/s): 210MB/s

Spindle Speed (RPM): 7,200

Cache (MB): 256

Reliability

Load/Unload Cycles: 600,000

Non-recoverable Read Errors Rate, Max: 1 per 10E15

Power-on Hours: 8,760

Mean Time Between Failures (MTBF, hours): 1,000,000

Power Management

Startup Current, Typical (12V, A): 1.8

Average Operating Power: 10.1

Idle Power Average (W): 7.8 W

Standby Mode/Sleep Mode, Typical (W): 1/1

Voltage Tolerance, Inc. Noise (5V / 12V): ±5% / ±10%

Environmental/Temperature

Operating Temperature (ambient, min °C): 0

Operating Temperature (drive reported, max °C): 65

Nonoperating Temperature (ambient, min / max °C): -40 / 70

Environmental/Shock

Shock, Operating/Non-operating: 2 ms (max): 70 Gs/300 Gs

Environmental/Acoustics

Acoustics, Idle (typical, measured in Idle 1 state) (dBA): 28

Acoustics, Seek (typical) (dBA): 32

Physical

Height (mm/in): 26.11 mm/1.028 in

Width (mm/in, max): 101.85 mm/4.01 in

Depth (mm/in, max): 146.99 mm/5.787 in

Weight (g/lb, typical): 720 g/1.59 lb
