Description

Specifications:

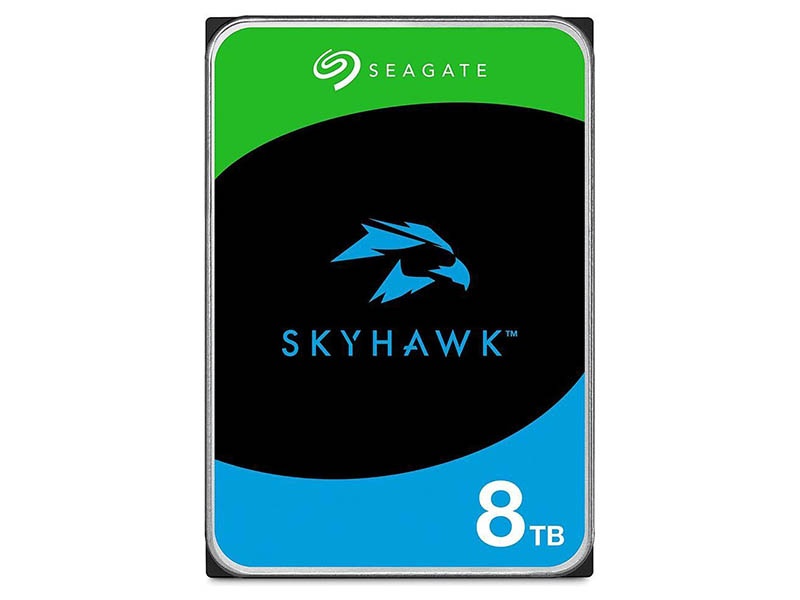

Standard Model Numbers: ST8000VX010

SkyHawk™ Health Management Included: Yes

Interface: SATA 6Gb/s

Recording Technology: CMR

Drive Design: Air

Features and Performance

Drive Bays Supported: Up to 16

Cameras Supported: Up to 64

RV Sensors: Yes

Max Sustained Transfer Rate OD (MB/s): 180MB/s

Cache (MB): 256

Reliability/Data Integrity

Tarnish Resistant: Yes

Load/Unload Cycles: 600,000

Nonrecoverable Read Errors Rate, Max: 1 per 10E14

Power-On Hours per year: 8760

Workload Rate Limit (WRL): 180

Mean Time Between Failures (MTBF) (hours): 1,000,000hr

Power Management

Startup Current, Typical (12V, A): 1.8

Average Operating Power (W): 5.3W

Idle Average (W): 3.4W

Standby Mode/Sleep Mode, Typical (W): 0.25/0.25

Voltage Tolerance (5V): ±5%

Voltage Tolerance (12V): ±10%

Environmental/Temperature

Operating (ambient, min °C): 0

Operating (drive reported, max °C): 65

Nonoperating (ambient, min °C): -40

Physical

Height (mm/in, max): 26.1mm/1.028in

Width (mm/in, max): 101.6mm/4.00in

Depth (mm/in, max): 146.99mm/5.787in

Weight (g/lb, typical): 630g/1.389lb
