Description

ABS plastic housing

The keyboard PCB, screw-in stabs, and the PC plate

Double-shot OSA PBT keycaps (including Mac & Windows keycaps)

Gateron Jupiter switches

Specs:

Width: 148.7 mm

Length: 328.5 mm

Front Height: 21.5 mm (without keycaps)

Back Height: 29.4 mm (without keycaps)

Feet Height: 2 mm

Angle: 3.5° / 7.1° / 9.5°

Weight: 770 g ± 10 g (Fully Assembled Version)

Body Material: ABS Plastic

Plate Material: PC

Polling Rate: 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)

Mount Style: Gasket Mount Design

Bluetooth Device Name: Keychron V1 Max

Battery: 4000 mAh Rechargeable li-polymer battery

Wireless Working Time (Backlit off) Up to 225 hours (Lab test result may vary by actual use)

Wireless Working Time (RGB) Up to 100 hours (Lowest brightness)

Charging Time Around 5 hours

Bluetooth Version 5.1

Compatible System : Windows/macOS/Linux

N-Key Rollover (NKRO) Yes for both wireless and wired modes

Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.

Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)

MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)

Switches: Gateron Jupiter (Fully Assembled Version)

Backlight: South-facing RGB LED

Stabilizer: Screw-in PCB stabs

Charging Port: USB Type-C

Cable: Type-C cable + Type-A to Type-C adapter

Operating Environment: -10℃ to 50℃

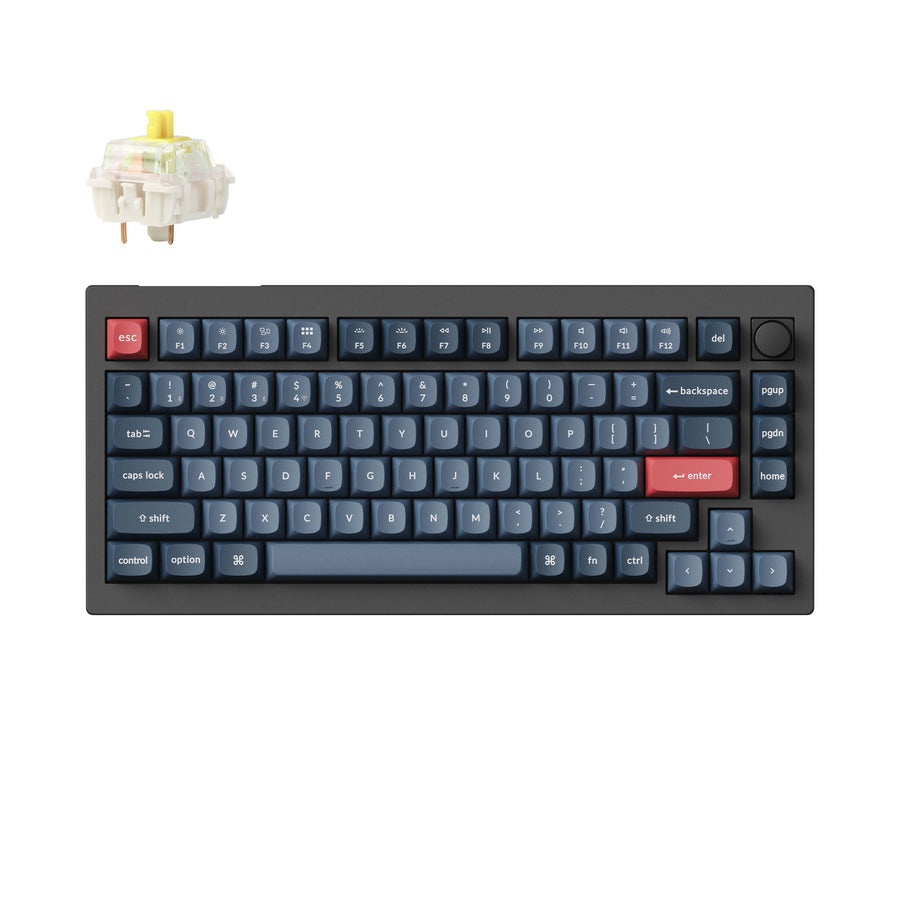

The V1 Max is a fully customizable mechanical keyboard, offering both 2.4 GHz wireless and Bluetooth 5.1 connectivity. Its compact 75% layout, gasket mount design, sound absorbing foam, double-shot PBT keycaps, and more take your typing experience to a new level, delivering heightened levels of comfort and productivity.

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V1 Max via Bluetooth 5.1 to three devices.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Gasket Mount Design

By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V1 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.

The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.
