Description

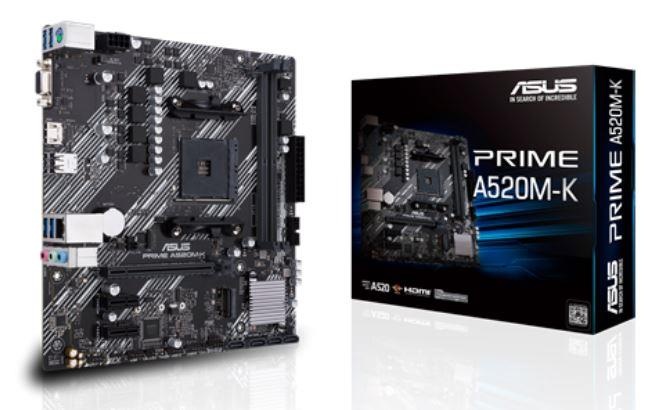

Model: PRIME A520M-KCPU: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *Chipset: AMD A520Memory:2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered MemoryDual Channel Memory ArchitectureGraphic:1  x D-Sub1  x HDMI 2.1(4K@60HZ)Expansion Slots:1 x PCIe 3.0 x16 (x16 mode)AMD A520 Chipset2 x PCIe 3.0 x1Storage:Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s portsAMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices supportAMD A520 Chipset:4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10LAN:Realtek RTL8111H 1Gb EthernetASUS LANGuardAudio:Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :Audio ShieldingDedicated Audio PCB layersUSB Ports:Rear USB Port (Total 6)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port (Total 6)2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A)Back I/O Ports:1 x PS/2 keyboard/mouse combo port(s)1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.03 x Audio jack(s)Internal I/O Ports:1 x CPU Fan connector(s)1 x Chassis Fan connector(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header4 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connectorForm Factor:mATX Form Factor8.9  inch x 8.7  inch ( 22.6  cm x 22.1  cm )
