Description

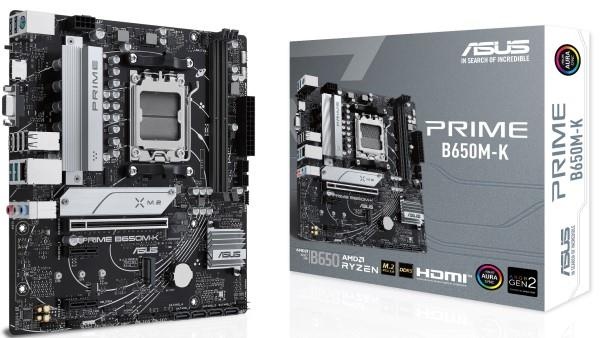

Матична плочаAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop ProcessorsAMD B650 ChipsetMemory2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800ECC and Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports AMD Extended Profiles for Overclocking (EXPO™)OptiMem IINon-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.Graphics1 x VGA port1 x HDMI™ portGraphics specifications may vary between CPU types. Please refer to AMD CPU specifications.Supports 4K@60Hz as specified in HDMI 2.1.Expansion SlotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x16 mode)AMD Ryzen™ 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode)AMD B650 Chipset2 x PCIe 4.0 x1 slotsStorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen™ 9000 & 7000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)AMD Ryzen™ 8000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)AMD B650 Chipset4 x SATA 6Gb/s portsEthernet1 x Realtek 2.5Gb EthernetUSBRear USB (Total 8 ports)2 x USB 3.2 Gen 2 ports (2 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsAudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layersA chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.Back Panel I/O Ports2 x USB 3.2 Gen 2 ports (2 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x VGA port1 x HDMI™ port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack™ button1 x PS/2 Keyboard/Mouse combo portInternal I/O ConnectorsFan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB Type-C® )1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous2 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel headerSpecial FeaturesASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- Safeslot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution-  M.2 heatsink-  VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LEDAura Sync- Aura RGB header- Addressable Gen 2 headersBIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 Rubber Package1 x Screw Package for M.2 SSDDocumentation1 x User guideForm Factormicro-ATX Form Factor9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
