Description

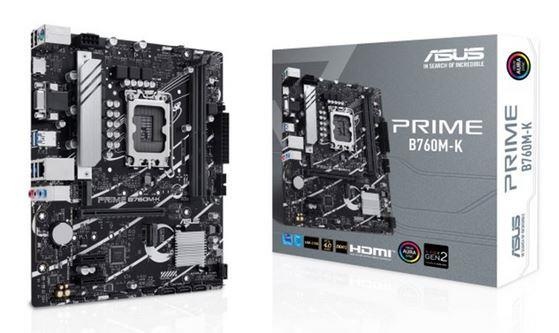

ModelL PRIME B760M-KIntel® Socket: LGA1700 for Intel® CoreTM 14th & 13th Gen Processors, Intel® CoreTM 12th Gen, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**Chipset: Intel® B760 ChipsetMemory2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics:1 x VGA port1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)Expansion Slots:Intel® CoreTM Processors (14th & 13th & 12th Gen):1 x PCIe 4.0 x16 slotIntel® B760 Chipset:2 x PCIe 4.0 x1 slotsTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel® CoreTM Processors (14th & 13th & 12th Gen):M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 Chipset:M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s portsIntel® Rapid Storage Technology supports SATA RAID 0/1/5/10.Ethernet:1 x Realtek 2.5Gb EthernetUSB:Rear USB (Total 6 ports):4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A?Front USB (Total 5 ports):1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 portsAudio:Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features:Audio ShieldingPremium Audio capacitorsDedicated Audio PCB layersBack Panel I/O Ports:4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x VGA port1 x HDMITM port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo portInternal I/O Connectors:Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related:1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related:2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB:1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 portsMiscellaneous:2 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel headerBIOS:128 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEForm Factor:mATX Form Factor9.6 inch x 8.3 inch (24.4cm x 21.1cm)
