Description

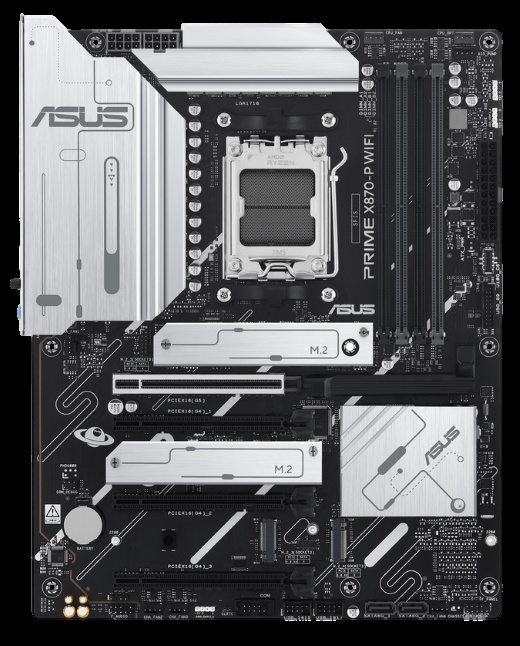

CPU Support: AMD Socket AM5 (Ryzen 9000/8000/7000 Series)Chipset: AMD X870 ChipsetMemory: 4 x DDR5 DIMM, up to 256GB, up to 8000+ MT/s (OC), ECC & Non-ECC, Dual ChannelGraphics Output: 1 x HDMI 2.1 (4K@60Hz), 2 x USB4 (DP 1.4a, 4K@60Hz via USB-C)Expansion Slots: 1 x PCIe 5.0 x16 (Ryzen 9000/7000),1 x PCIe 4.0 x16 (Ryzen 8000),3 x PCIe 4.0 x16 (x1 mode via chipset)Storage: 4 x M.2 (PCIe 5.0/4.0/3.0 support varies by slot/CPU),2 x SATA 6Gb/sRAID Support: Ryzen 9000: RAID 0/1/5/10Ryzen 8000: RAID 0/1Ryzen 7000: RAID 0/1/10Ethernet: 1 x Realtek 2.5Gb Ethernet + ASUS LANGuardWi-Fi / BT: Wi-Fi 7 (2×2, up to 2.9Gbps, 2.4/5/6GHz), Bluetooth 5.4Rear USB Ports:2 x USB4 (40Gbps, USB-C),1 x USB 10Gbps (Type-A),3 x USB 5Gbps,4 x USB 2.0Front USB Ports:1 x USB-C 10Gbps,1 x USB 5Gbps header (for 2 ports),2 x USB 2.0 headers (for 4 ports)Audio: Realtek 7.1 HD Audio Codec, 24-bit/192kHz,Audio shielding, premium capacitorsInternal I/O: 4 x Chassis fan headers, CPU/AIO fan headers, 24-pin ATX, 2 x 8-pin EPS, TPM, RGB headers, etc.Back Panel Ports: USB ports (as above), HDMI, Wi-Fi antenna, 2.5Gb LAN, 3 x Audio jacks, BIOS FlashBack buttonSpecial Features: ASUS Q-Design (Q-Latch, Q-Slot, etc.), Armoury Crate, Aura Sync, AI Cooling II, SafeSlotBIOS: 256Mb UEFI AMI BIOS, EZ Flash 3, CrashFree BIOS 3Software: Armoury Crate, ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS CPU-Z, Norton 360 (trial), WinRAR (trial)OS Support: Windows 11Form Factor: ATX (30.5 cm x 24.4 cm)
