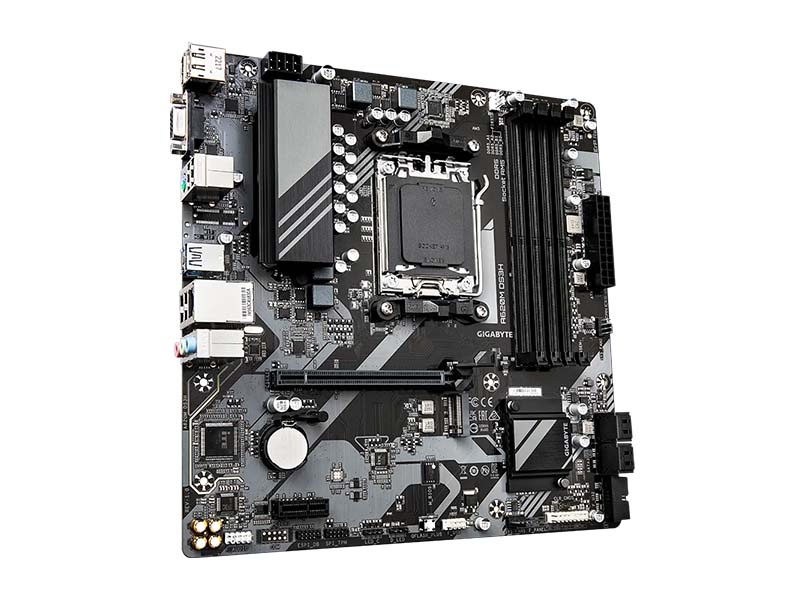

Description

CPU: AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

Chipset: AMD A620

MemoryL Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Onboard Graphics

Integrated Graphics Processor:

– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

Support for up to triple-display at the same time

Audio:

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

Chipset: 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support

– 1 x USB 3.2 Gen 1 port on the back panel

– 1 x USB 2.0/1.1 port on the back panel

Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header

– 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors:

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x Clear CMOS jumper

Back Panel Connectors:

1 x PS/2 keyboard/mouse port

1 x USB Type-C® port, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 port

4 x USB 2.0/1.1 ports

1 x HDMI port

1 x DisplayPort

1 x D-Sub port

1 x RJ-45 port

3 x audio jacks
