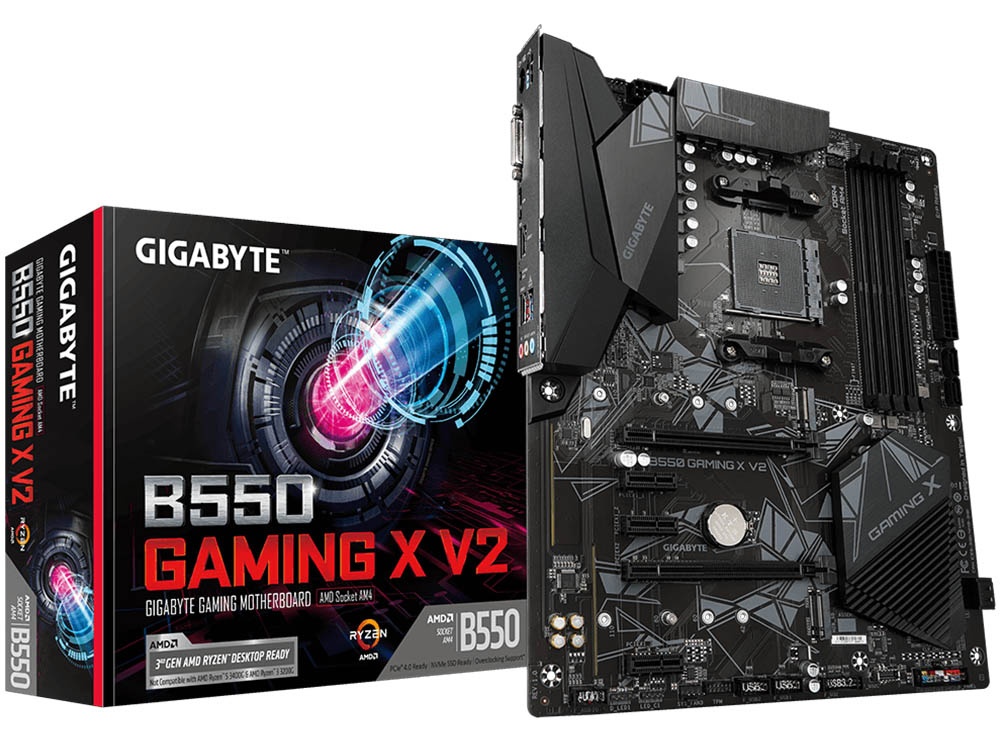

MB Gigabyte B550 GAMING X V2 AM4 DDR4 4733MHz OC SATA3 2xM.2 USB3.2/Type-C PCIe 4.0 HDMI/DVI
6,180 ден
Description
Supports AMD Ryzen™ 5000 Series/ Ryzen 5000 G-Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
•Ultra Durable™ PCIe 4.0 Ready x16 Slot
•Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors
•GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
•Front USB 3.2 Gen1 Type-C™ and HDMI & DVI-D for Multiple Display
•High Quality Audio Capacitors and Audio Noise Guard for Ultimate •Audio Quality
•RGB FUSION 2.0 support Addressable LED & RGB LED Strips
•Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan •Headers with FAN STOP
•Q-Flash Plus Update BIOS without Installing the CPU, Memory and •Graphics Card
•Anti-Sulfur Resistors Design
SPECS
CPU: AMD Socket AM4, support for: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen 5000 G-Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
Chipset: AMD B550
Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
AMD Ryzen™ 5000 series processors/ 3rd Generation AMD Ryzen™ :
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics: Maximum shared memory of 16 GB
Audio: Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
LAN: Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
Supporting PCIe 3.0 x2 mode
3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Storage Interface: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs, 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
Internal I/O Connectors:
-1 x 24-pin ATX main power connector
-1 x 8-pin ATX 12V power connector
-1 x CPU fan header
-1 x water cooling CPU fan header
-3 x system fan headers
-2 x addressable LED strip headers
-2 x RGB LED strip headers
-1 x CPU cooler LED strip/RGB LED strip header
-2 x M.2 Socket 3 connectors
-4 x SATA 6Gb/s connectors
-1 x front panel header
-1 x front panel audio header
-1 x USB Type-C™ port, with USB 3.2 Gen 1 support
-1 x USB 3.2 Gen 1 header
-2 x USB 2.0/1.1 headers
-1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
-1 x Clear CMOS jumper
Back Panel Connectors:
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 2 Type-A port (red)
1 x Q-Flash Plus button
1 x RJ-45 port
3 x audio jacks
