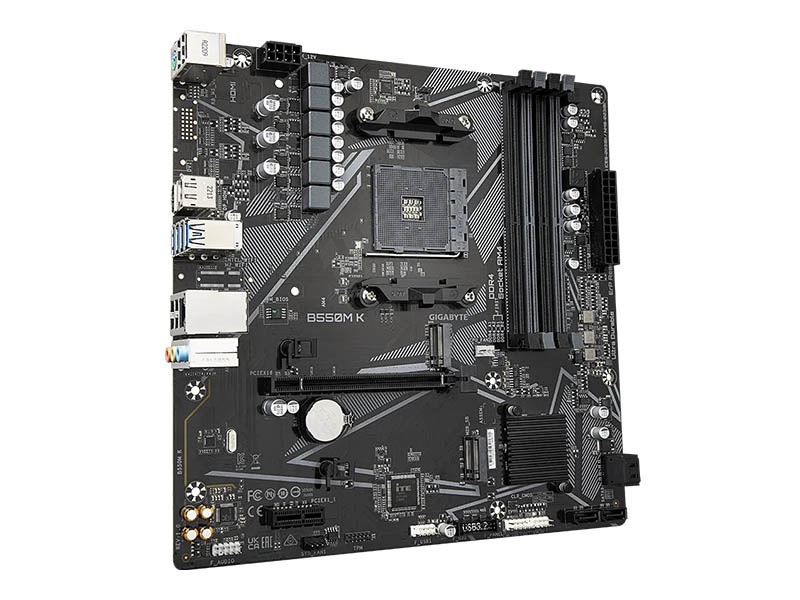

Description

CPU: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

Chipset: AMD B550

Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Dual channel memory architecture

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

1 x PCI Express x16 slot, integrated in the CPU:

AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode

1 x PCI Express x1 slot, integrated in the Chipset:

Supporting PCIe 3.0 x1 mode

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:

Supporting PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

Support for RAID 0, RAID 1, and RAID 10

USB

CPU: 4 x USB 3.2 Gen 1 ports on the back panel

Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard/mouse port

1 x DisplayPort

1 x HDMI port

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller: iTE® I/O Controller Chip

Operating System: Windows 11 64-bit, Windows 10 64-bit

Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
