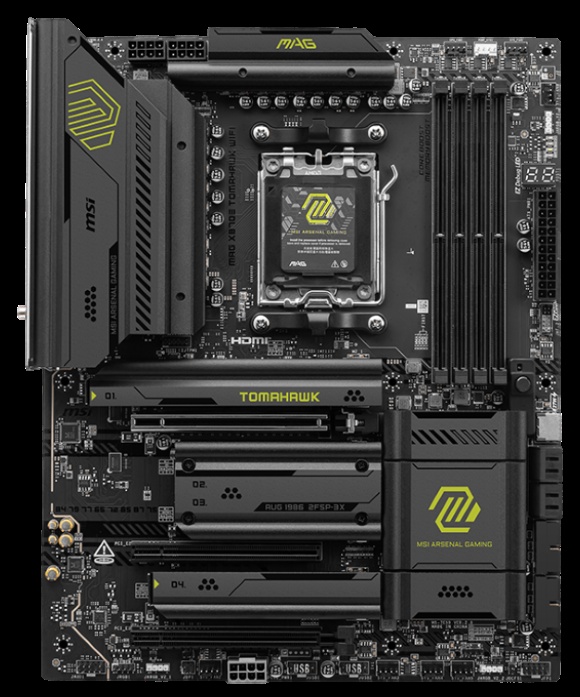

Description

Chipset: AMD X870ECPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop ProcessorsSocket: AM5Memory Support: 4 x DDR5 UDIMM, up to 256GBOC: up to 8400+ MT/s (1DPC 1R)JEDEC: 4800–5600 MT/sMemory Features: Dual-channel, Non-ECC Unbuffered, EXPO™, CUDIMM (CD bypass mode)Graphics Outputs: 1 x HDMI 2.1 (up to 8K@60Hz)2 x USB4 (DP 1.4 over Type-C, 4K@60Hz)*GPU Dependency: Display outputs only available with CPUs featuring iGPUExpansion Slots: PCI_E1: PCIe 5.0 x16 (CPU)PCI_E2: PCIe 3.0 x1 (Chipset)PCI_E3: PCIe 4.0 x4 (Chipset)Audio Codec: Realtek® ALC40807.1-channel USB audio32-bit / 384 kHz supportS/PDIF outStorage Options: 4 x M.2 slots:- M.2_1: PCIe 5.0 x4 (CPU)- M.2_2: PCIe 5.0 x4 (CPU)*- M.2_3/4: PCIe 4.0 x4 (Chipset)4 x SATA 6Gb/sRAID Support: SATA: RAID 0/1/10M.2 NVMe: RAID 0/1/5/10(RAID 5 only with Ryzen 9000)USB (Rear): 2 x USB4 (40Gbps Type-C)1 x USB 20Gbps (Type-C)3 x USB 10Gbps (Type-A)3 x USB 5Gbps (Type-A)4 x USB 2.0USB (Front): 1 x USB 20Gbps Type-C4 x USB 5Gbps (Type-A via headers)4 x USB 2.0 (via headers)LAN: 1 x Realtek® 8126 5G LANWi-Fi & Bluetooth: Wi-Fi 7 (802.11be, 2.4/5/6GHz, 320MHz, up to 5.8Gbps)Bluetooth® 5.4Internal Headers: 6 x System Fan, CPU Fan, Pump Fan, 3 x ARGB Gen2, 1 x RGB, TPM, Front Audio, Chassis Intrusion, 2 x USB2.0, 2 x USB 5GbpsPower Connectors: 1 x 24-pin ATX2 x 8-pin CPU1 x 8-pin PCIe Power (for GPU stability)Debug Features: 4 x EZ Debug LEDs1 x EZ Digit Debug LEDBack Panel Ports: HDMI, 5G LAN, Audio jacks, Wi-Fi module, USB 40/20/10/5/2.0, Clear CMOS, Flash BIOSBIOS Features: Flash BIOS ButtonRAID ConfigurableUSB4/M.2 bandwidth switch via BIOSOS Compatibility: Windows® 11 64-bitForm Factor: ATX
