Description

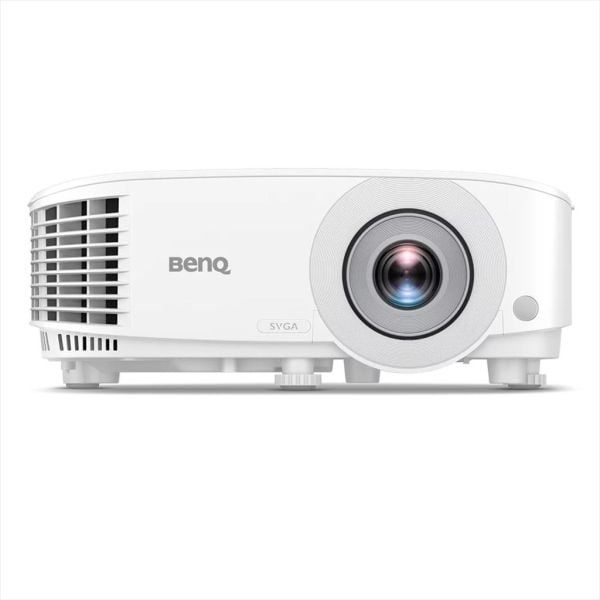

Model Name: BENQ MS560

Specification

Display Brightness (ANSI lumens): 4000
Resolution: SVGA (800×600)
Native Aspect Ratio: 4:3
Contrast Ratio (FOFO): 20,000:1
Display Color: 30-bit (1.07 billion colors)
Light Source: Lamp
Light Source Life: Normal 6000 hrs, SmartEco 10000 hrs, LampSave 15000 hrs, ECO 10000 hrs
Throw Ratio: 1.96~2.15
Zoom Ratio: 1.1x
Lens: F/# = 2.56 ~ 2.68, f=22~24.1mm
Projection Offset (Full-Height): 110%
Keystone Adjustment: 1D, (Auto) Vertical ± 40 degrees
Picture Modes: 3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2
Resolution Support: VGA (640×480) to WUXGA_RB (1920×1200) *RB=Reduced blanking
Horizontal Frequency: 15K~102KHz
PC in (D-sub 15pin): (x1)
Monitor out (D-sub 15pin): (x1)
Composite Video in (RCA): (x1)
S-Video in (Mini DIN 4pin): (x1)
HDMI in: (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
USB Type A: (x1)
USB Type Mini B: (x1)
RS232 in (DB-9pin): (x1)
Speaker: (x1), 10W
Audio in (3.5mm Mini Jack): (x1)
Audio out (3.5mm Mini Jack): (x1)
Operating Temperature: 0~40℃
Power Supply: AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V): 260W/110V
Acoustic Noise (Typ./Eco.)(dB): 34/29
