Description

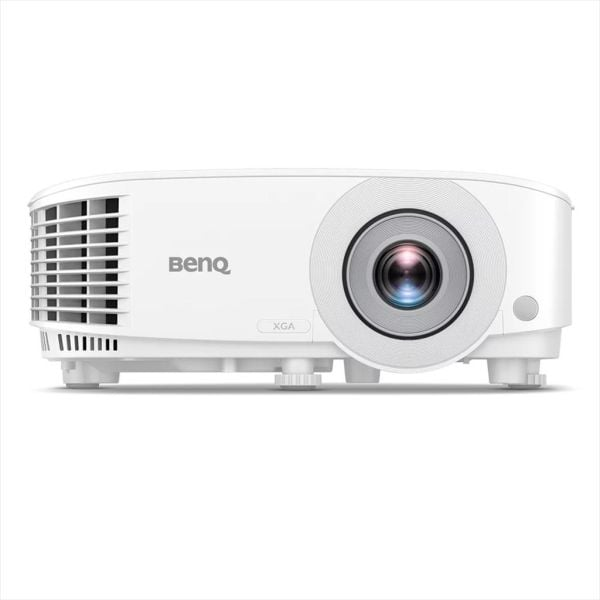

Model Name: BENQ MX560

Specification

Display

Brightness (ANSI lumens): 4000
Native Resolution: XGA (1024×768)
Native Aspect Ratio: 4:3
Contrast Ratio (FOFO): 20,000:1
Display Color: 30-bit (1.07 billion colors)
Light Source: Lamp
Light Source Life:

Normal: 6000 hrs
ECO: 10000 hrs
SmartEco: 10000 hrs
LampSave: 15000 hrs

Optical

Throw Ratio: 1.96~2.15
Zoom Ratio: 1.1x
Lens: F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
Projection Offset (Full-Height): 110%
Keystone Adjustment: 1D, (Auto) Vertical ± 40 degrees

Compatibility

Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency: 15K~102KHz

I/O Interface

PC in (D-sub 15pin): 1
Monitor out (D-sub 15pin): 1
Composite Video in (RCA): 1
S-Video in (Mini DIN 4pin): 1
HDMI in: 2 (HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4))
USB Type A: 1
USB Type Mini B: 1
RS232 in (DB-9pin): 1

Audio

Speaker: 1 (10W)
Audio in (3.5mm Mini Jack): 1
Audio out (3.5mm Mini Jack): 1

Environment

Operating Temperature: 0~40℃
Power Supply: AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V): 260W/110V
Acoustic Noise (Typ./Eco.): 34/29 dB
