Description

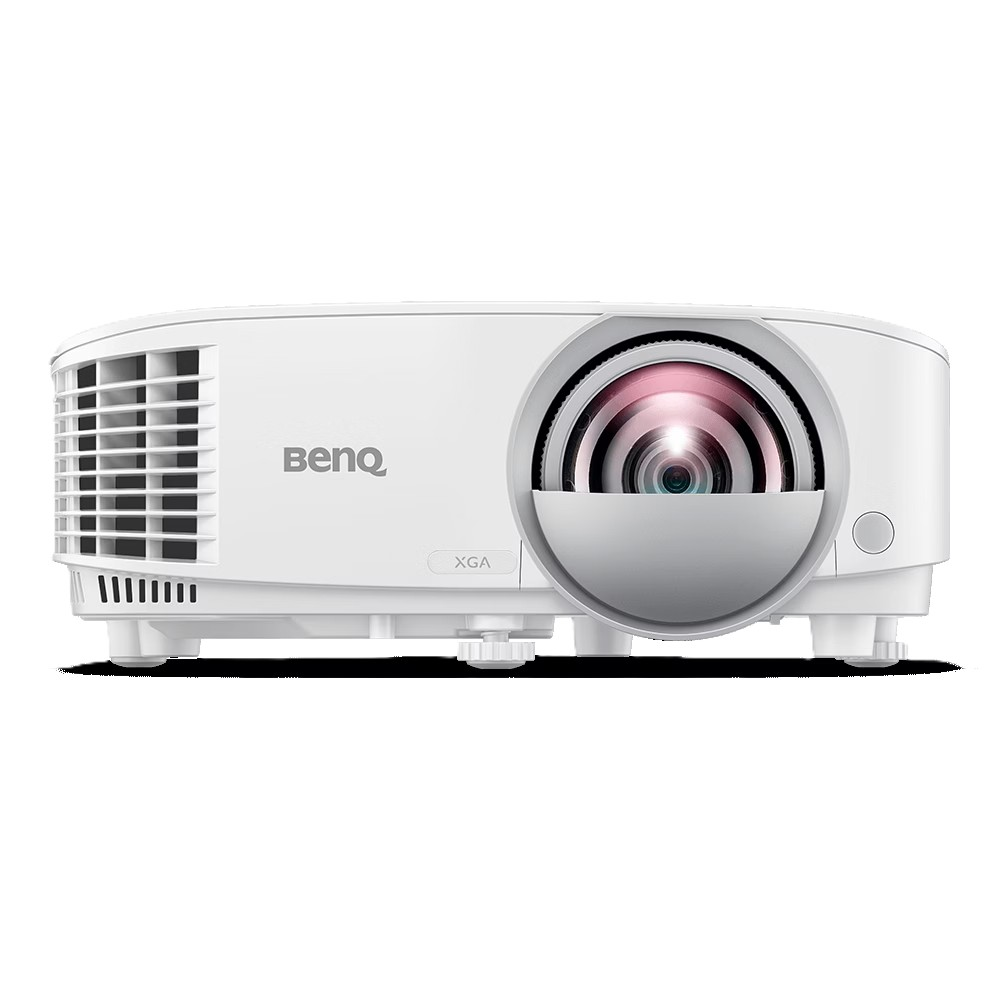

MX808STH education projector enhances interactive learning and classroom collaboration with outstanding picture quality, high brightness, and short throw capability. Smart installation flexibility combined with reduced maintenance and ownership costs make MX808STH the ideal choice for today’s schools.

Display

Brightness (ANSI lumens): 3600

Resolution: XGA (1024×768)

Native Aspect Ratio: 4:3

Contrast Ratio (FOFO): 20,000:1

Display Color: 30-bit (1.07 billion colors)

Light Source: Lamp

Light Source Life

a. Normal 6000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs, b. ECO 10000 hrs

Optical

Throw Ratio: 0.61

Zoom Ratio: Fixed

Lens: F/# = 2.6,f = 6.9 mm

Projection Offset (Full-Height): 115%

Keystone Adjustment: 1D, Vertical ± 40 degrees


Picture Modes: 3D, Bright, Cinema, Presentation, sRGB, User 1, User 2

Compatibility

Input Lag: 33.4 ms (1080P 60Hz)

Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

Horizontal Frequency: 15K~102KHz

I/O Interface

PC in (D-sub 15pin): (x2)

Monitor out (D-sub 15pin): (x1)

HDMI in: (x2), HDMI-1 (1.4a/HDCP1.4)

USB Type A: (x1), USB Type A-1 (2.0/Power Supply1.5A)

USB Type Mini B: (x1), USB Type Mini B-1(service/Page up&down)

RS232 in (DB-9pin): (x1)

Audio

Speaker: (x1), 10W

Audio in (3.5mm Mini Jack): (x2)

Audio out (3.5mm Mini Jack): (x1)

Environment

Operating Temperature: 0~40℃

Power Supply: AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V): 260

Acoustic Noise (Typ./Eco.)(dB): 34/29

Accessories

Standard:

Remote Control w/ Battery

Power Cord (by region)

Quick Start Guide

Warranty Card (by region)

RCE013, RCE013J (for J sku)

Optional:

PointWrite PW03

FingerTouch PT20

Spare Lamp Kit 5J.JMG05.001

Wall Mount WM06G3

Dust Filter 5J.JGV14.001

Dimension & Weight

Dimensions (WxHxD) (mm): 296 x120 x239

Net Weight (kg): 2.6

Projection System: DLP
