Description

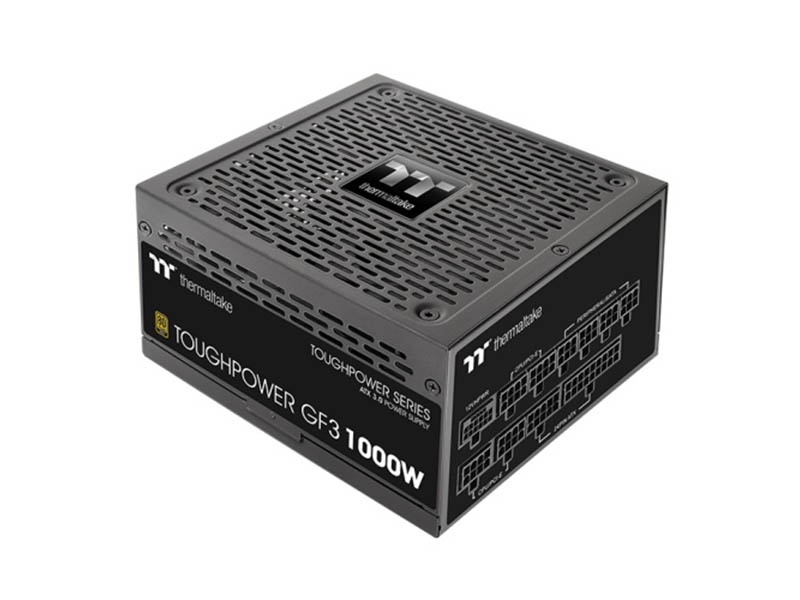

Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.

The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1000W can deliver up to 600W for PCIe 5.0 graphics cards.

WATTS: 1000W

MODEL: TPD-1000AH3FCG

MAX. OUTPUT CAPACITY: 1000W

COLOR: Black

DIMENSION ( W / H / D ): 150mm(W) x 86mm(H) x 160mm(D)

WEIGHT: 1.72 KG

PFC (POWER FACTOR CORRECTION): Active PFC

POWER GOOD SIGNAL: 100-150 msec

HOLD UP TIME: > 17msec at 100% of full load

INPUT CURRENT: 13.0A / 6.5A

INPUT FREQUENCY RANGE: 50/60Hz

INPUT VOLTAGE: 100V – 240V~

OPERATING TEMPERATURE: 0°C to + 40°C

OPERATING HUMIDITY: 20% to 90%,non-condensing

STORAGE TEMPERATURE: -20°C to + 70°C

STORAGE HUMIDITY: 5% to 95%, non-condensing

COOLING SYSTEM: 13.5cm fluid bearing fan

EFFICIENCY: Meet 80 PLUS®Gold at 115Vac input.

MTBF: 100,000 hrs minimum

SAFETY APPROVAL: CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC

PCI-E CONNECTOR:

PCIe 6+2pin x 4

PCIe 12+4pin x 1

PROTECTION: OCP, OVP, UVP, OPP, SCP, OTP

P/N: PS-TPD-1000FNFAGx-4
