Description

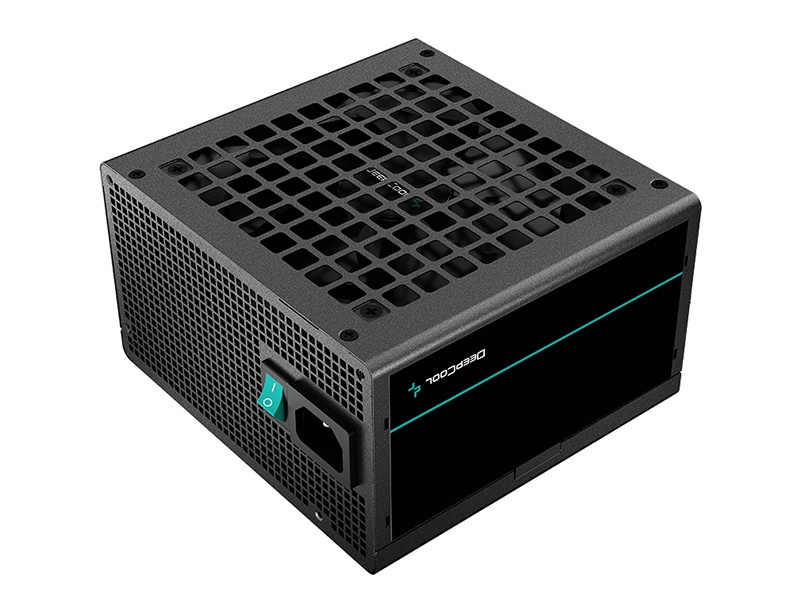

PF750

The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.

TO HIGHER STANDARDS

Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

SILENT HYDRAULIC BEARING FAN

Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

FLAT BLACK CABLES

Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

Technical Spec

Type: ATX12V V2.4

Product Dimensions: 150×140×86mm (W x L x H)

80PLUS Certifications: 230V EU White

Fan Size: 120mm

Fan Bearing: Hypro Bearing

Topology: Active PFC+Double tube forward

Capacitors: Taiwan bulk capacitor

Power Good Signal: 100-500ms

Hold Up Time: ≥12ms(75% Load)

Efficiency: ≥85% Under Typical Load(50% Loading)

Protection: OPP/OVP/SCP/UVP

Operation Temperature: 0-40°C

Regulatory: CB/CCC/CE/UKCA/EAC/RCM

Erp Regulation: ErP 2010

MTBF: 100,000 Hours

More info: More info
