Description

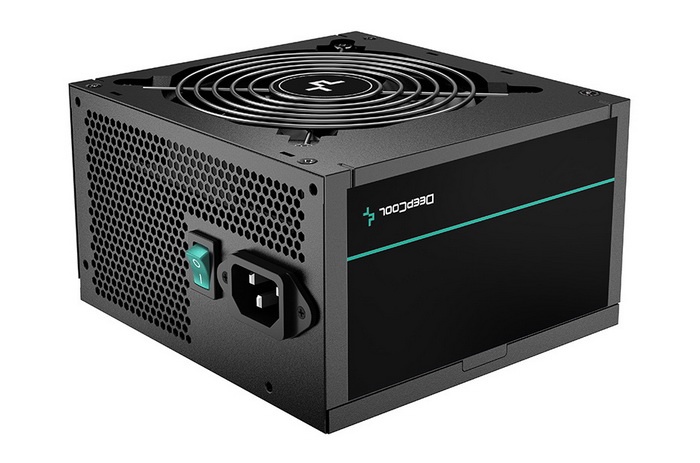

PM850D

DeepCool PM850D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.

80 PLUS Gold Certified

Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste.

Quality topology

For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.

Built to spec

Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.

Enough power to go around

The PM850D features three independent PCIe outputs and two EPS connectors for continuous high quality power that supports the latest high-end graphics cards and motherboards for gaming excellence.

Technical Spec

Type: ATX12V V2.4

Product Dimensions: 150×140×86mm (W x L x H)

80PLUS Certifications: GOLD

Fan Size: 120mm

Fan Bearing: Hypro Bearing

Topology: Active PFC + Full Bridge SRC LLC + DC to DC

Capacitors: Japanese Bulk Capacitor

Power Good Signal: 100-150ms

Hold Up Time: ≥16ms(75% Load)

Efficiency: ≥90% Under Typical Load(50% Loading)

Protection: OPP/OVP/SCP/OTP/OCP/UVP

Operation Temperature: 0-40°C

Regulatory: TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS

Erp Regulation: ErP(2014)

MTBF: 100,000 Hours
