Description

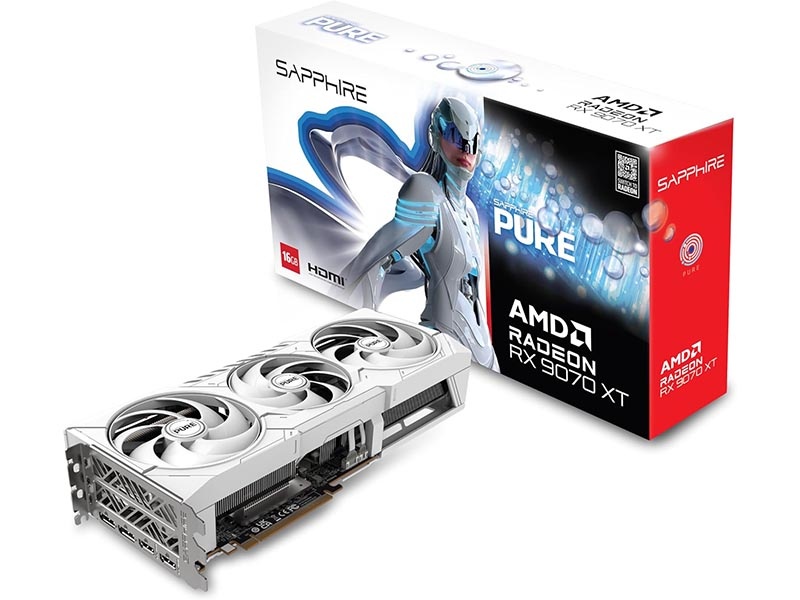

GPU: AMD Radeon™ RX 9070 XT Graphics Card

AMD RDNA™ 4 Architecture

Engine Clock

Boost Clock: Up to 3010 MHz

Game Clock: Up to 2460 MHz

Stream Processors: 4096

Compute Units: 64 Cus (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache: 64MB

Ray Accelerators: 64

AI Accelerator: 128

Memory Size/Bus: 16GB/256 bit GDDR6

Memory Clock: 20 Gbps Effective

Displays: Maximum 4 Displays

Resolution:

HDMI®: 7680×4320

DisplayPort™ 2.1a: 7680×4320

Interface: PCI-Express 5.0 x16

Output:

2x HDMI®

2x DisplayPort™ 2.1a

BIOS Support: UEFI

Game Index: 4K

Sapphire Features:

Honeywell PTM7950 Thermal Interface Material (TIM)

AeroCurve Fan Blade

Free Flow

FrameDefense

Integrated Cooling Module

Tri-X Cooling Technology

High TG Copper PCB

Optimized Composite Heatpipes

Metal Backplate

ARGB SAPPHIRE Logo

Two-Ball Bearing Fans

14-Phase Digital Power Design

Fuse Protection

Intelligent Fan Control

Precision Fan Control

TriXX Supported

Performance vs. Efficiency Quicksets

Glow!

TriXX Boost

External RGB LED MB Synchronization

Accessories Bundled:

L-Shape Support Bracket

3pin 5V ARGB Cable

AMD Features:

AMD RDNA™ 4 Architecture

64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)

AMD HYPR-RX with AFMF 2

AMD FidelityFX™ Super Resolution 4 with AI Upscaling

DisplayPort™ 2.1a

AMD Radiance Display™ Engine

AMD Fluid Motion Frames 2 technology

AMD Radeon™ Anti-Lag 2 technology

AV1 Encode/Decode

AMD FidelityFX™ technologies

Microsoft® DirectX® 12 Ultimate

AMD Noise Suppression

AMD Freesync™ technology

16 GB of GDDR6 on 256-bit Memory Bus

AMD smart technologies

AMD Software: Adrenalin Edition™ application

Cooler Type:

Tri-X Cooling

AeroCurve Fan Blade

Free Flow

Integrated Cooling Module

High TG Copper PCB

Optimized Composite Heatpipes

Two-Ball Bearing

Form Factor: 3 slot, ATX

Dimension: 320(L)X 120.25(W)X 61.6 (H)mm

Power Consumption: 317W Typical Board Power

OS: Linux®, Windows® 10, and Windows 11. 64-bit operating system required

System Requirement:

Minimum 750 Watt Power Supply

2 x 8-pin Power Connector.

PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8GB of system memory. 16GB recommended.
